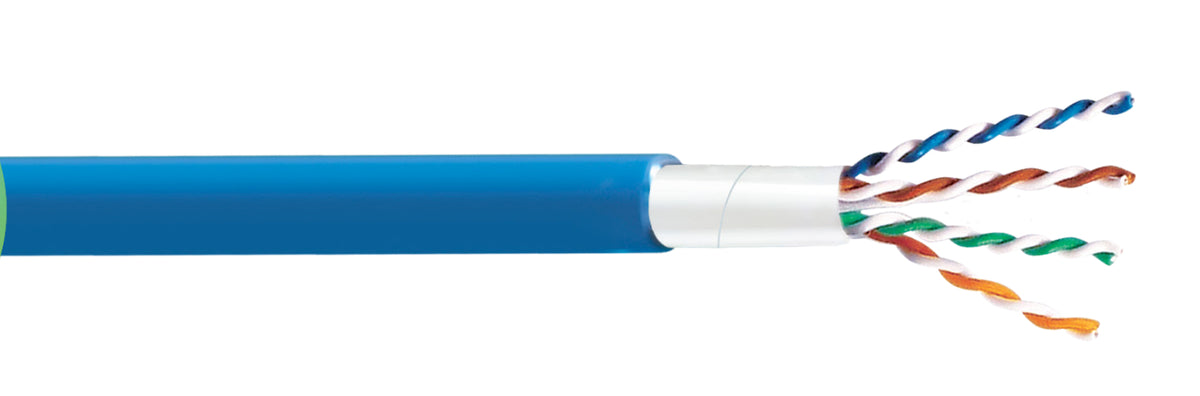

Prysmian Group 7151850 | Cable, 23AWG, Solid, 4 Pairs, White

Prysmian Group - 7151850 - Features

• Mosaic™ variable laser cut tape provides enhanced alien cross-talk protection: guaranteed +8 dB over TIA 568.2-D for both PSANEXT & PSAACRF
• Best EMI immunity in UTP cable utilizing Mosaic™ Variable Laser Cut Tape
• Record-breaking outside diameter of 0.230 inch for plenum supports higher cable density and easier pathway fill.
• Small 0.250-inch nominal cable diameter for Riser supports easier pathway fill for conduits.
• The smaller diameter design simplifies installation by allowing a 1?inch bend radius and reducing overall cable weight to increase the speed of stripping, termination, and routing.
• Improved distribution and warehousing efficiency UL Listed CMP?LP 0.7A (or 140W) for high power PoE applications.
• UL Listed CMP?LP 0.5A, or 100W, for high-power PoE applications.
• 105°C CMP jacket rating supports higher operating temperatures and high?wattage applications in a wide range of operating environments, allowing a simplification of system designs for today’s PoE systems.
• Can contribute toward LEED Points
• Weighs just 30 pounds (>20% less than competition)
• TRU?Mark® footage markings from 1000' to 0' streamline pulls and inventory control.
• Made in the U.S.A. for consistent quality and supply assurance.
• >Feature Title< = Prysmian Group - 7151850 - Product Categories
• https://cdn.shopify.com/s/files/1/0843/1616/0235/files/product_classification.jpg?v=1786475215
• IEEE 802.3 10GBASE?T, 1000BASE?T, 100BASE?TX, 10BASE?T.
• PoE, PoE+, and PoE++ high?power applications.
• ANSI/TIA 854 1000BASE?TX networks.
• Digital video distribution.
• Broadband and baseband analog video.
• CDDI, Token Ring, and ATM backbone or horizontal links.
• ANSI/TIA-1179-A Healthcare facilities.
