Quam Nichols Company SYSTEM 12/VC | Loudspeaker, In-Ceiling Speaker...
Description
Description

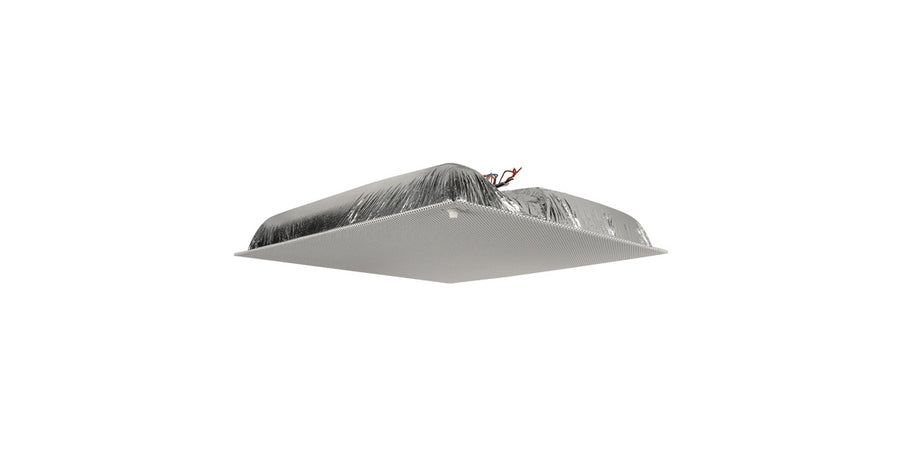

SYSTEM 12/VC is a complete, shallow depth, lightweight, 2' x 2' lay-in ceiling tile replacement loudspeaker system consisting of an 8" O.D. loudspeaker with a 5 oz. magnet and a 5W, 25/70V transformer with screwdriver adjusted volume control. Molded ber enclosure is 1,283 CID. The SYSTEM 12/VC has a powder coated steel bafe with standard perforation and four (4) seismic tie-off points. The cable clamp is included. No assembly required.
Specifications
Specifications
Quam Nichols Company - SYSTEM 12/VC - Product Categories
- Audio, Visual and Telephony
- Audio and Visual
- Audio Equipment
- Speakers
Quam Nichols Company - SYSTEM 12/VC - Specifications
| Manufacturer Name | Quam Nichols Company |
|---|---|
| Manufacturer Part Number | SYSTEM 12/VC |
| Item Description | Loudspeaker, In-Ceiling Speakers, 12W, 8 , 65Hz - 17kHz |
| Amperage | 426 A |
| Color | White |
| Decibels | 92 dB |
| Dimensions | HxWxD: 3-1/2 x 23-13/16 x 23-13/16 in. |
| Dispersion/Beam Spread | 100 deg. |
| Environment | Indoor |
| Finish | Powder-Coated |
| Frequency Range | 65Hz - 17kHz |
| Frequency Response | 65Hz to 17kHz |
| Impedance | 8 |
| Magnet Specification | 5 oz. BeFe Ceramic |
| Material | Molded Fiber Enclosure, Steel Grille |
| Mounting | Ceiling |
| Power | 12 |
| Product Type | Volume Control Tile Replacement Loudspeaker |
| Speaker Design | In-Ceiling Speakers |
| Transformer Setting | 0.31 W, 0.63 W, 1.25 W, 2.5 W, 5 W |
