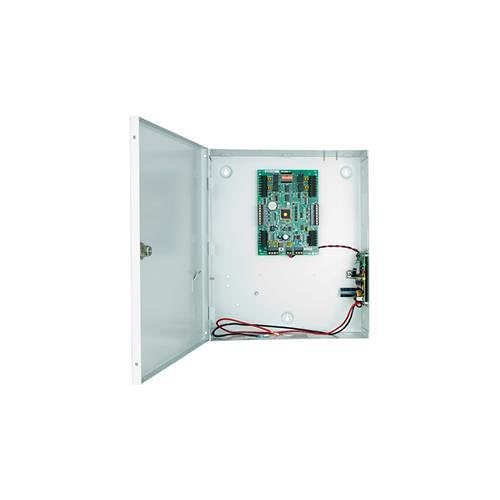

RBH Access Technologies Inc RBH-IRC-2000 | Panel/Software Kit, 16.5 VAC, 40 VA, 8 Inputs, 4 Outputs

RBH Access Technologies Inc RBH-IRC-2000 | Panel/Software Kit, 16.5 VAC, 40 VA, 8 Inputs, 4 Outputs RBH-IRC-2000 | The IRC-2000 Integrated Reader Controller allows control of two access control points (doors). It utilizes flash firmware for easy upgrades, and employs fully distributed intelligence for off-line operations. Decisions such as access level changes, schedule activation and card expiration are made by the IRC-2000 controller without the need of a computer. The panel contains on-board clock and memory backup as well as thermal overload protection. IRC-2000 supports fully supervised communication via RS-232, RS-485 and TCP/IP with selectable communication speed up to 56.6 Kbps. Connect to the Integra32 Server PC via LIF-200 TCP/IP Gateway, RS-232 cable, or a USB to 485 converter, for a total of up to 16 panels per controller network. Each IRC-2000 Intelligent Reader Controller has a capacity of storing 5,000 unique 10 digit card numbers, 10 unique site codes and 3,000 off line transactions in its event buffer. In addition each IRC-2000 Intelligent Reader Controller can simultaneously read up to 5 distinct Wiegand or Clock and Data card formats. The 8 fully programmable four state monitoring, NO-NC supervised inputs & 8 fully programmable Fail Safe / Fail secure outputs (4 x 5 A at 30 VDC SPDT dry contacts and 4 x 12 VDC, 100 mA electronic drivers) makes the IRC-2000 a perfect building automation tool. The IRC-2000 Intelligent Reader Controller includes a lockable metal enclosure and a built-in 2 A, 12 VDC power supply.
