Rutherford Controls 3513DM | Dormakaba Rutherford Controls Field Selectable Cabinet Lock with Dual Monitoring 12/24VDC Black
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Rutherford Controls 3513DM | Dormakaba Rutherford Controls Field Se...
Description
Description

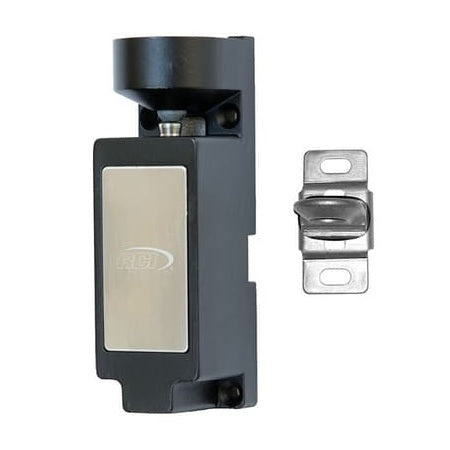

Constructed with superior heavy duty metal, this compact electric lock is an ideal choice for securing any cabinet or drawer. The 3513DM is easy to installwith self-adjusting alignment tabs together with, side or top mounting capabilities. Four countersunk mounting holes also ensure that the lock is securely mounted. Lock mode is determined by the positioning of the lock solenoid. The 3513DM Dual Monitoring version is ideal when monitoring of the door and locking pin are required.
Rutherford Controls - 3513DM - Features
- Surface-mounted compact electric lock
- Field selectable fail locked or fail unlocked assembly
- Field selectable dual voltage 12/24VDC operation
- Stainless steel locking pin assembly
- 440 lbf/200 kgf holding force
- Low energy consumption (200mA @ 12VDC, 100mA @ 24VDC)
- Superior heavy duty metal construction
- The 3513DM version provides dual monitoring for enhanced security
Specifications
Specifications
Rutherford Controls - 3513DM - Specifications
| Lock Housing | 1-1/4”D x 1-3/16”W x 3-11/16”L (32.0mm x 30.1mm x 94.0mm) |
|---|---|
| Locking Pin Assembly | 3/16” (4.5mm) |
| Operating Voltage | 12VDC continuous; 24VDC continuous |
| Cycle Rating | 500,000 cycles |
| Current Consumption | 200mA, 12VDC 100mA, 24VDC |
| Holding Force | 440 lbf/200 kgf |
| Operating Temperature | 14º to 104°F (-10º to 40°C ) |
