Safe Signal WFD50EXP | 5" Explosion Proof Waterflow Switch
Regular price
$1,868.79
Unit price
Brand: System Sensor
|
SKU:
WFD50EXP
Regular price
$1,868.79
Unit price
Description
Description

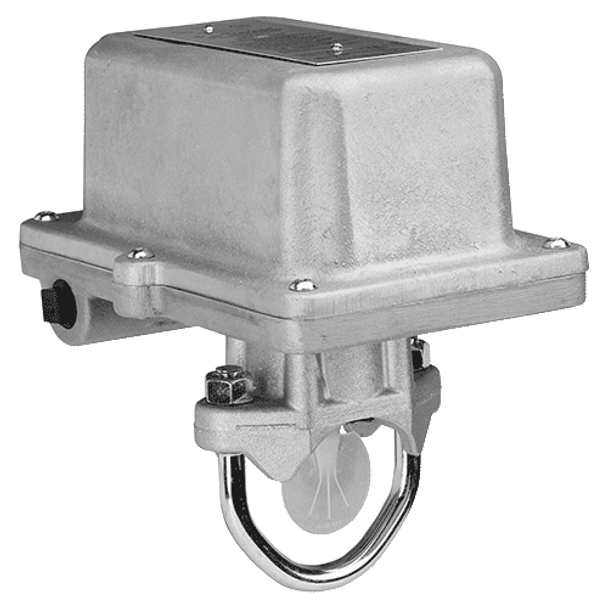

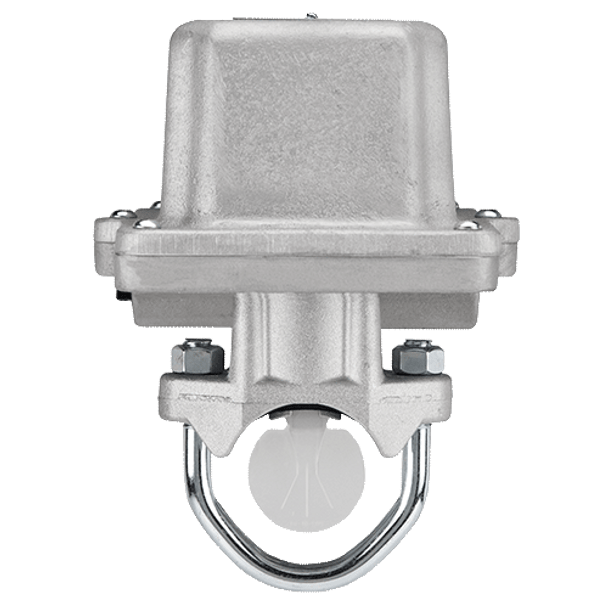

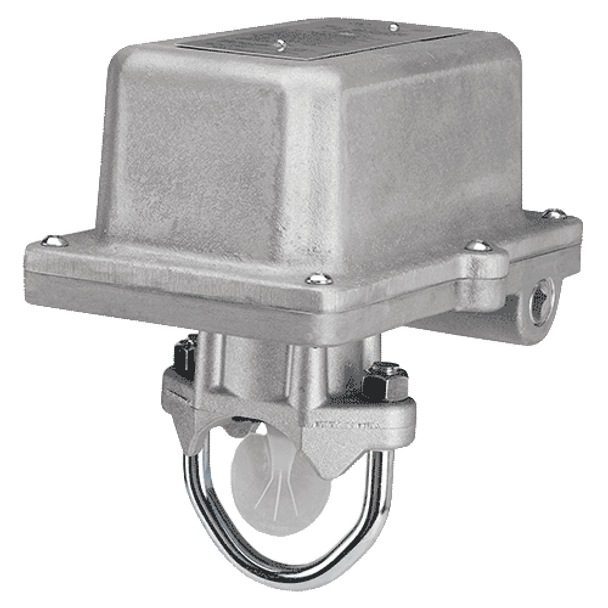

Safe Signal WFD50EXP | 5" Explosion Proof Waterflow Switch
The WFD50EXP is a waterflow detector for installation on 5" steel pipe. System Sensor Waterflow Switches are compatible with schedule 10 through 40 steel pipe. UL, ULC Listed and FM Approved.
Specifications
Specifications
Safe Signal - WFD50EXP - Specifications
| Conduit Entrances | Two openings for 1/2" conduit |
|---|---|
| Contact Ratings | Two sets of SPDT (Form C); 10.0A @ 125/250VAC; 2.5A @ 24VDC? |
| Enclosure Rating | UL NEMA 4 |
| Hazardous Location Classifications | Class I, Div 1, Groups B, C, D; Class II, Div 1, Groups E,F,G; Class III, Div 1? |
| Maximum Surge | 18 FPS |
| Operating Temperature Range | 32°F to 120°F (0° to 49°C) |
| Overall Dimensions | 6"H x 9"L x 6.5"W |
| Pipe Schedule | 10 through 40 |
| Pipe Size | 5" |
| Shipping Weight | 12.1 lbs. |
| Triggering Threshold Bandwidth Flow Rate | 4-10 GPM |
| UL Pressure Rating | 450 PSI |
| WARNING: | This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
