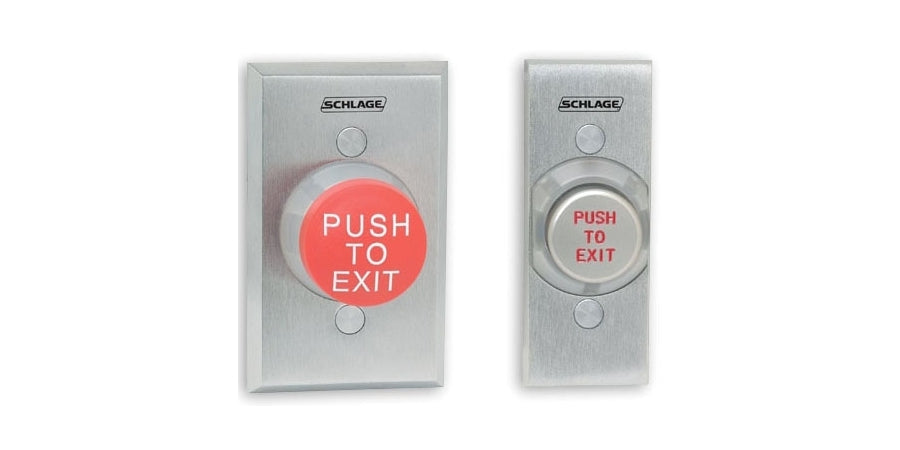

Schlage (Allegion Brand) 621AL EX DA 630 | Pushbutton, Single-Pole, Double Throw Switch, Momentary Switch, Double Throw, 3 A, Aluminum Button
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Schlage (Allegion Brand) 621AL EX DA 630 | Pushbutton, Single-Pole,...
Description
Description
The 620 Series pushbuttons provide a wide selection of design options, finishes and messages. They are offered in narrow-stile and standard width plates with multiple button configurations and finish options to provide enhanced architectural appeal. Schlage 620 Series pushbuttons also feature significant installer-friendly innovations such as screw terminal connections for the momentary action models and an optional, easy-to-install L2/ILL PC board enabling backlit illumination for the cone with green, yellow and red LEDs. Additional options include maintained or delayed action, 2-pole double-throw switches, narrow-stile faceplates and heavy-duty faceplates with several architectural finishes.
Specifications
Specifications
Schlage (Allegion Brand) - 621AL EX DA 630 - Product Categories
- Security
- Access Control, Door Hardware and Locks
- Electrified Door Hardware
- Switches and Pushbuttons
Schlage (Allegion Brand) - 621AL EX DA 630 - Specifications
| Manufacturer Name | Schlage (Allegion Brand) |
|---|---|
| Manufacturer Part Number | 621AL EX DA 630 |
| Item Description | Pushbutton, Single-Pole, Double Throw Switch, Momentary Switch, Double Throw, 3 A, Aluminum Button |
| Amperage | 3 A |
| Button Color | Aluminum |
| Button Illumination | Illuminated |
| Button Size - Nominal | 1.25 In. Diameter |
| Button Text | Push To Exit |
| Circuit State | Normally Open |
| Faceplate Size - Nominal | 2-3/4 In. X 4-1/2 In. |
| Finish | Satin Stainless Steel |
| Mounting | Single Gang Electrical Box |
| Product Type | Heavy-Duty Delayed Action Pushbutton |
| Switch State | Momentary |
| Switch Type | Single-Pole, Double-Throw |
Documents and Downloads
Documents and Downloads
