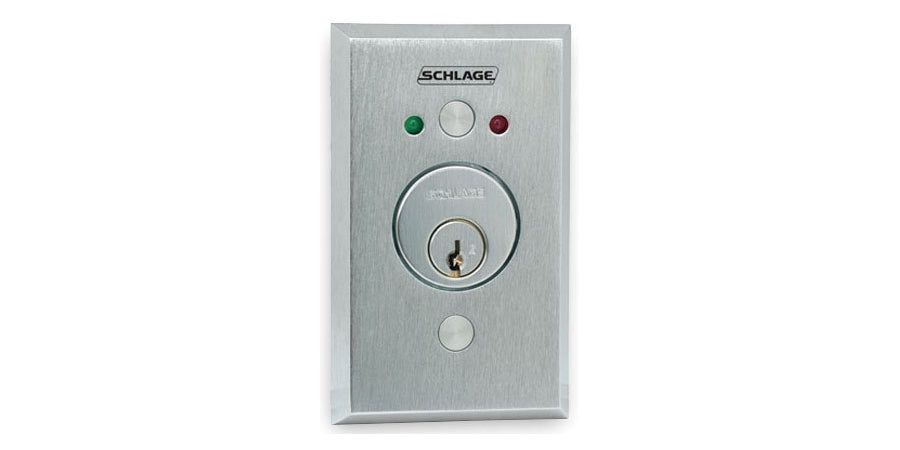

Schlage (Allegion Brand) 653-04 630 | Key Switch, Single-Pole, Doub...
Description
Description
Schlage 650 Series key switches utilize an innovative magnetic spring design which allows installers to configure both clockwise and counterclockwise key turn direction as well as momentary or maintained action in seconds. 1-gang and narrow stiles are available with numerous options which include heavy-duty plate, weather-resistant cover (single gang size only), 2 LED lights - green/red, anti-tamper switch and Schlage Everest cylinder. in addition to the standard (630) satin stainless steel finish, there are three additional architectural finishes to choose from.
Specifications
Specifications
Schlage (Allegion Brand) - 653-04 630 - Product Categories
- Security
- Access Control, Door Hardware and Locks
- Electrified Door Hardware
- Switches and Pushbuttons
Schlage (Allegion Brand) - 653-04 630 - Specifications
| Manufacturer Name | Schlage (Allegion Brand) |
|---|---|
| Manufacturer Part Number | 653-04 630 |
| Item Description | Key Switch, Single-Pole, Double Throw Switch, Maintained Switch, Double Throw |
| Amperage | 5 A |
| Circuit State | Double Throw (Select No Or Nc) |
| Faceplate Size - Nominal | 4-1/2 In. X 2-3/4 In. |
| Finish | Satin Stainless Steel |
| Lock Type | Accepts Mortise Cylinder |
| Mounting | Single Gang Electrical Box |
| Product Type | Single-Direction Key Switch |
| Switch State | Maintained |
| Switch Type | Single-Pole, Double-Throw |
