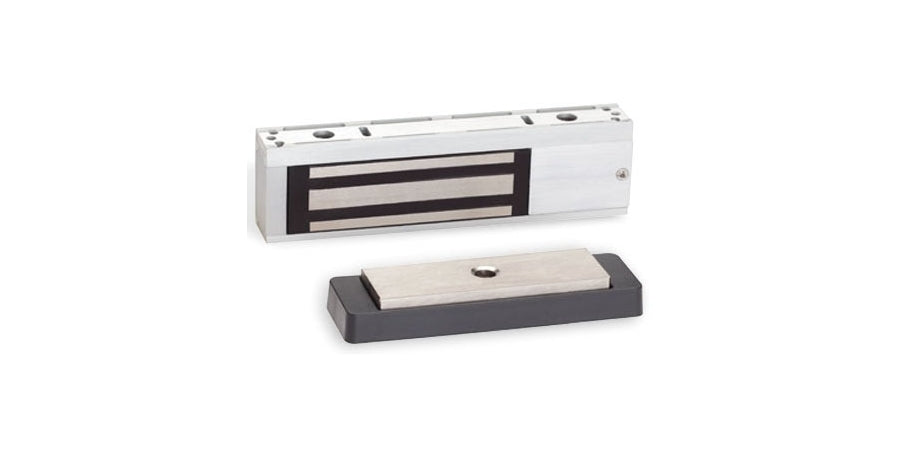

Schlage (Allegion Brand) M420 | Electromagnetic Lock, 500 lb. Holding Force, US28 Satin Anodized Aluminum
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Schlage (Allegion Brand) M420 | Electromagnetic Lock, 500 lb. Holdi...
Description
Description
M4 Series electromagnetic locks from Schlage are designed with the customer in mind to be robust, easy-to-install and secure. The unique bayonet mounting feature makes installation easier, allowing the installer to have their hands-free during the mounting process. All M4 Series electromagnetic locks are symmetrical with field-selectable handing, allowing optimum placement of the magnet, no matter the application. They are designed to provide automatic voltage sensing for 12 and 24 V along with polarity protection to make wiring less complex. M42 models are tested and certified to meet or exceed UL-134 and BHMA 5 lb. hold force requirements.
Schlage (Allegion Brand) - M420 - Features
- Traffic control: 500 lb. rated hold force
- Fail-safe operation on single or double doors
- Optional mounting kits available for top jamb mount, double door and HERCULITE® brand glass doors
- Connects to most access control systems
- Includes magnetic bond sensor (MBS), adjustable relock time delay, and door position switch
Specifications
Specifications
Schlage (Allegion Brand) - M420 - Product Categories
- Security
- Access Control, Door Hardware and Locks
- Electrified Door Hardware
- Electro-Magnets
Schlage (Allegion Brand) - M420 - Specifications
| Manufacturer Name | Schlage (Allegion Brand) |
|---|---|
| Manufacturer Part Number | M420 |
| Item Description | Electromagnetic Lock, 500 lb. Holding Force, US28 Satin Anodized Aluminum |
| Finish | US28 Satin Anodized Aluminum |
| Holding Force | 500 lb. |
| Input Voltage | 12/24 VDC |
| Mounting | Surface Mounted |
| Product Type | Electromagnetic Lock |
| Switches | Bond Sensor and Door Status |
| UL Listed | Yes |
Documents and Downloads
Documents and Downloads
