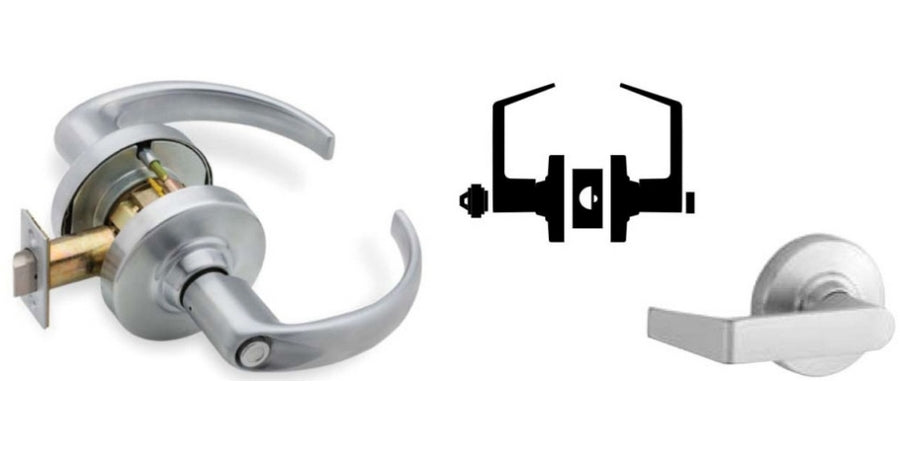

Schlage (Allegion Brand) ND73BD RHO 626 | Mechanical Door Cylindrical Lock, ANSI, Grade 1, Function, Corridor Lock, US26D Satin Chrome, Boxed
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Schlage (Allegion Brand) ND73BD RHO 626 | Mechanical Door Cylindric...
Description
Description
Beyond grade 1 performance is the hallmark of the mechanical and electrified ND Series locks. The locks are put through extreme levels of testing and are proven to withstand 3100 in. lb. of abusive lever torque - more than 2-1/2 times the grade 1 standard requirement. Offset lever pull testing up to 1600 lb. assures you of the lock's superb resistance against pry bar attacks. More than strong, ND Series is built to last and shows nearly zero droop or wobble after 16 million cycles. All ND Series locks including electronic and ligature-resistant trim use the common cylindrical ANSI-161 door preparation making them easily interchangeable. They are ideal for all new construction and retrofit applications where grade 1 strength and security are desired.
Schlage (Allegion Brand) - ND73BD RHO 626 - Features
- Handing: All ND-Series lever locksets are non-handed.
- Door Thickness: 1 5/8” to 2 1/8” (41mm-54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
- Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
- Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
- Lock Chassis: Zinc plated for corrosion resistance.
Specifications
Specifications
Schlage (Allegion Brand) - ND73BD RHO 626 - Product Categories
- Security
- Access Control, Door Hardware and Locks
- Mechanical Door Hardware
- Door Locks
Schlage (Allegion Brand) - ND73BD RHO 626 - Specifications
| Manufacturer Name | Schlage (Allegion Brand) |
|---|---|
| Manufacturer Part Number | ND73BD RHO 626 |
| Ansi Grade | Grade 1 |
| Item Description | Mechanical Door Cylindrical Lock, ANSI, Grade 1, Function, Corridor Lock, US26D Satin Chrome, Boxed |
| Backset | 2-3/4 In. |
| Cylinder Type | Less Small Format Interchangeable Core |
| Design | Flat Lever With Return |
| Finish | Us26D Satin Chrome |
| Function | Corridor Lock |
| Keyway | Less Sfic |
| Knob/Lever Type | Rhodes Lever |
| Latch Face | Square Corner 1-1/8 In. W |
| Number Of Cylinders | Single Cylinder |
| Packaging | Boxed |
| Product Type | Keyed Cylindrical Mechanical Lock |
| Special Rating | Ul Listed |
| Strike Type | Ansi Strike |
| Throughbolt Pattern | 2-3/4 In. C.C. 12 And 6 O'Clock |
| Ul Listed | Yes |
