Brand: Seco-Larm Usa
|
SKU:
10316409

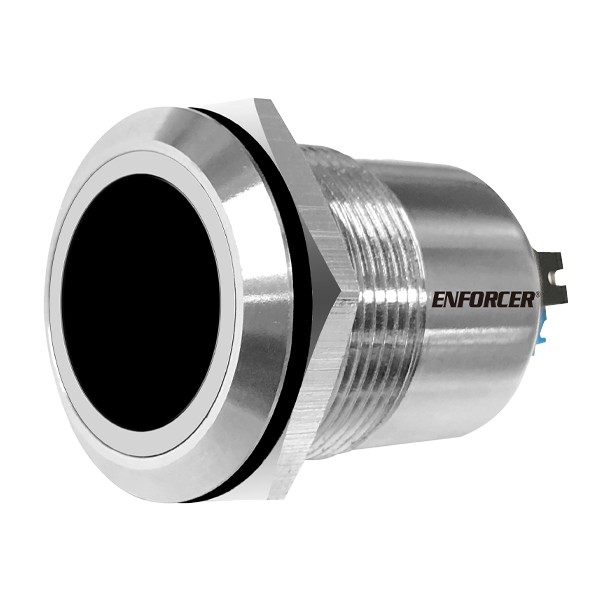

Seco-Larm CS-PD419-PQ | Infrared Proximity Sensor - 19mm, Stainless steel
Regular price
$56.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm CS-PD419-PQ | Infrared Proximity Sensor - 19mm, Stainless...
Regular price
$56.14
Unit price
Brand: Seco-Larm Usa
|
SKU:
10316409
Regular price
$56.14
Unit price
Shipping calculated at checkout.
Description
Description
Seco-Larm CS-PD419-PQ | Infrared Proximity Sensor - 19mm, Stainless steel
Seco-Larm - CS-PD419-PQ - Features
- No-touch operation reduces the risk of spread of germs, viruses, etc., through cross-contamination
- Adjustable sensor range up to 6? (15cm) 1A relay, adjustable trigger duration 0.5~20 seconds or toggle

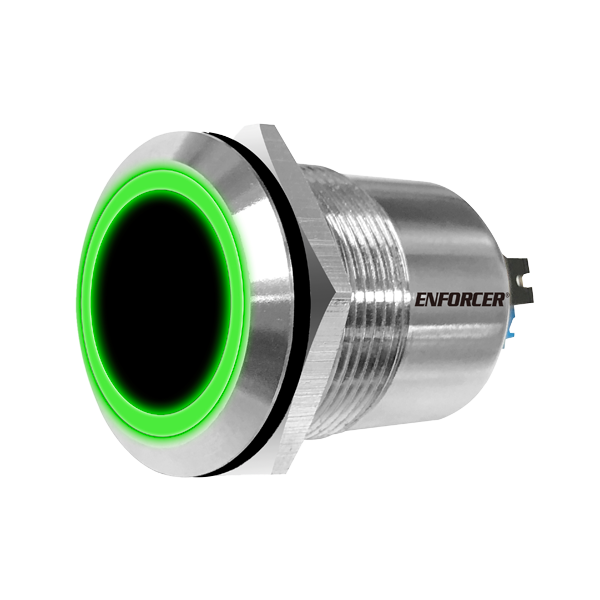

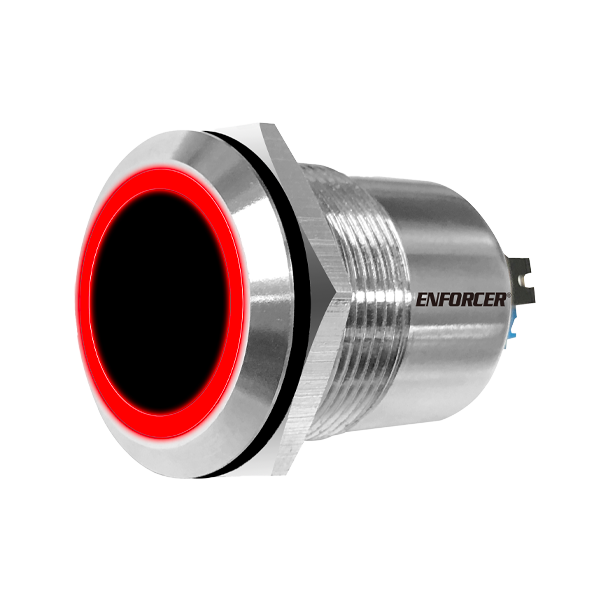

- Selectable LED colors (turns from red to green or green to red) to show if the sensor is activated
- Weatherproof (IP65) for outdoor use
- OEM / Private label available
- Weatherproof when properly installed
Specifications
Specifications
Seco-Larm - CS-PD419-PQ - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | CS-PD419-PQ |
| Item Description | Infrared Proximity Sensor - 19mm, Stainless steel |
| Operating Voltage | 12~24 VDC |
| Relay Type | Form C dry contact, NO/NC/COM, 1A@24VDC, 0.5A@12VAC |
| Response Time | 10mS |
| Output Time | 0.5~20s, toggle |
| Range | 1-9/16?~6? (4~15cm) |
| IP Rating | Weatherproof IP65* |
| Operating Temperature | -4°~131° F (-20°~55° C) |

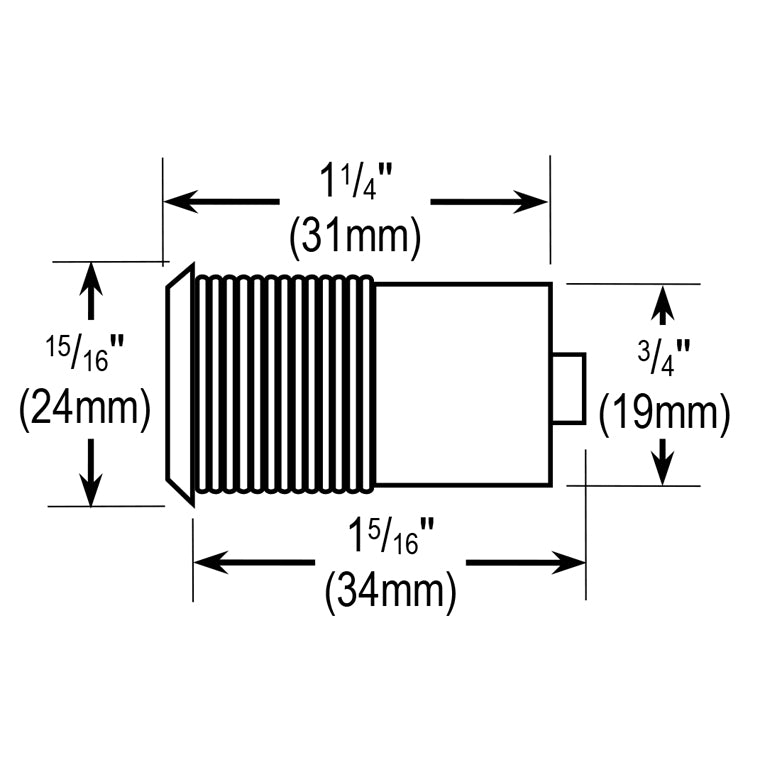

| Dimensions | ø3/4? (ø19mm) |
| UNSPSC Code | 39120000 |
| Category | Access |
