Brand: Seco-Larm Usa | SKU: 10213467

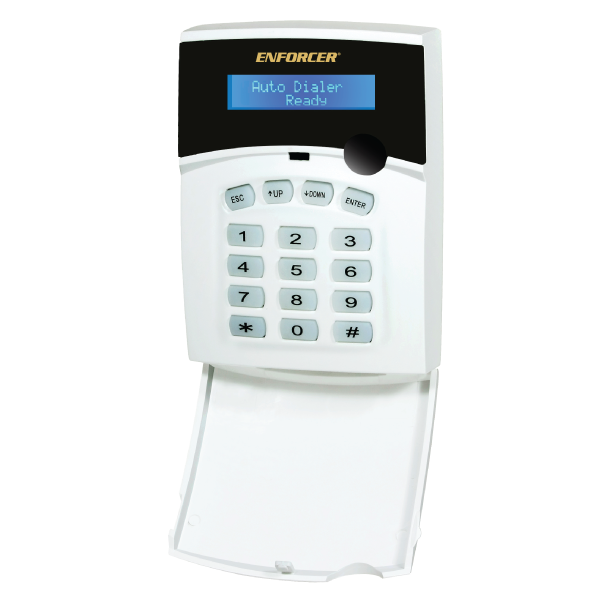

Seco-Larm E-922CPQ | Voice Dialer

$134.78

Description

Trigger-activated dialer with user-recorded 18-second alarm message
The last 6 seconds of the alarm message is individually customizable for each input
3 Trigger inputs and 1 inhibit input, each programmable high (input 3.5V) or low (input 1V)
1 Auxiliary relay output, NO/NC programmable for 1~255 seconds
Works as a stand-alone unit or connected to a security system
LCD display indicates status, either “ready" or “alarm" showing which input and number dialed
Listen in, stop the dialing process, and/or turn the auxiliary output on or off during dialer call out
Call in at any time to listen in to room and/or turn the auxiliary output on or off
6 Programmable alarm telephone numbers (up to 14 digits each)
Programmable auto-dialing to call each number three times or call a single number
Built-in flash memory to protect against system data loss in case of power failure
Tone or pulse dialing
Terminal blocks for all external connections
Wall-mountable

Brand Name	Seco-Larm
Manufacturer Part Number	E-922CPQ
Item Description	Voice Dialer
Phone System	For single-line analog or VOIP phone systems
Operating Voltage	10~18 VDC
Current draw (max.) – Standby	50mA@12VDC
Current draw (max.) – Dialing	200mA@12VDC
Alarm message length (user recorded)	12s site message + 6s individual message for each input
Programmable alarm phone numbers	6
Maximum digits per phone number	14
Programmable dial attempts	Up to 3 times per number
Alarm message repeat	1~2 times for each number
Trigger inputs – 1~3	Programmable high (input 3.5V, max. 15V) N.O. or N.C. or low (input1V) N.O. or N.C.
Trigger inputs – Inhibit	Programmable high (input 3.5V, max. 15V) N.O. or N.C. or low (input1V) N.O. or N.C.
Auxiliary output	2A@24VDC, NO/NC, programmable 1~255s
Operating temperature	32°~140°F (0°~60°C)
Weight	15.9-oz (450g)
Dimensions	4-1/16?x5-9/16?x1-11/16? (104x142x43 mm)
UNSPSC Code	39120000
Category	Security
