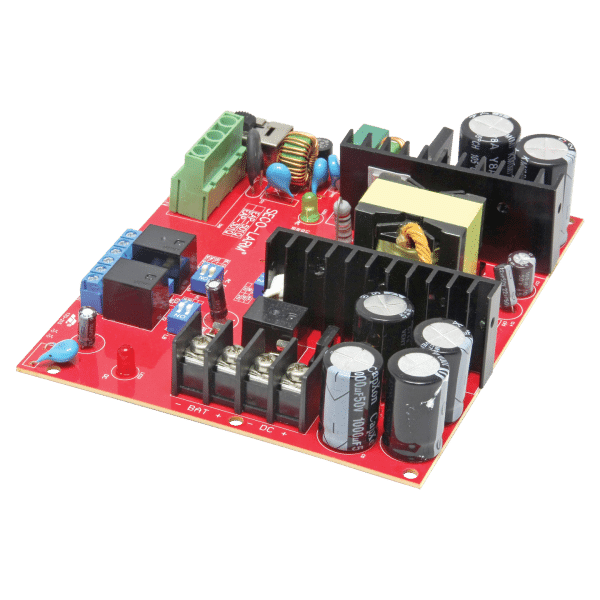

Seco-Larm EAP-5D1MQ | Access Control Power Supply Module
Regular price
$104.43
Unit price
Brand: Seco-Larm Usa
|
SKU:
776749-OBRA
Regular price
$104.43
Unit price
Description
Description
Seco-Larm EAP-5D1MQ | Access Control Power Supply Module
Seco-Larm - EAP-5D1MQ - Features
- AC power failure supervision relay
- Battery failure / low battery supervision relay
- DC Power failure supervision relay (EAP-5D5Q only)
- Auxiliary output relay
- Relays rated 3A@24VDC, 3A@120VAC
- Adjustable voltage range to compensate for voltage drop
- Built-in backup battery charger (battery not included)
- Selectable 2.2k 9 End-of-Line (EOL) resistor for AC failure and battery failure supervision relays via DIP switch
- Selectable delay timer (5 seconds, 5 minutes, 5 hours) for AC failure supervision relay via DIP switch
- LED Status indicator for AC input, DC output and channel outputs
- Power
- Operating Input voltage: 110~240 VAC
- Field-selectable 12 or 24 VDC output
- Total continuous output current: 5A@12VDC, 2.5A@24VDC
- AC Input fuse rated at 3.15A
Specifications
Specifications
Seco-Larm - EAP-5D1MQ - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | EAP-5D1MQ |
| Item Description | Access Control Power Supply Module |
| Input Voltage | 110~240VAC |
| Output Voltage | 12 or 24VDC selectable via DIP switch |
| Adjustable Output Voltage Range | 11~15 @ 12VDC setting, via VR switch, 23~26 @ 24VDC setting, via VR switch |
| Number of Outputs | 1 |
| Total Supply Current | 5A@12VDC / 2.5A@24VDC |
| Input Fuse Rating | 3.15A ( glass fuse, AC) |
| LED Status Indicator | AC input ( Green ), DC Output ( Red ) |
| End-of-Line Resistor (EOL) | Selectable ON ( 2.2K?) or OFF via DIP switch |
| AC-Fail Relay Delay Timer | Selectable @ 5sec, 5min or 5hr via DIP switch |
| Supervision Relays | Contact Rating: 3A@24VDC Dry Relay Output |
| Category | Access |
