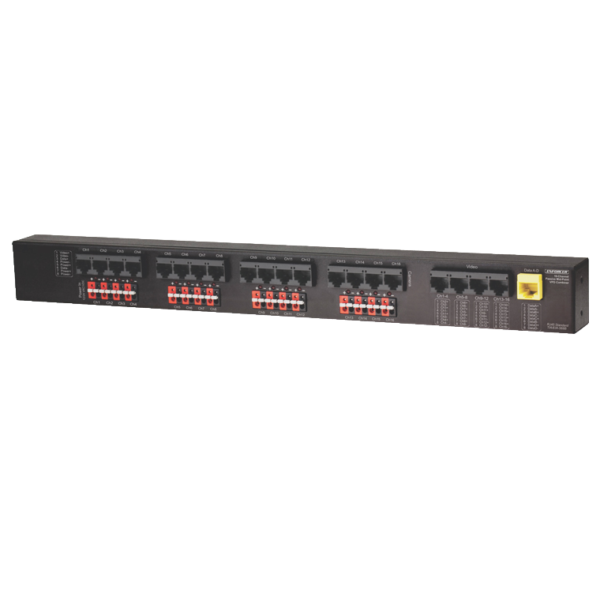

Seco-Larm EB-P316-60MQ | 16 Channel Video/Power/Data Passive Midpoint Combiner
Seco-Larm - EB-P316-60MQ - Features
- Video, power, and data over a single category cable – CAT5e~6
- Compatible with all traditional and HD analog formats, including HD-AHD, HD-CVI, and HD-TVI
- Used in mid-span applications
- Supports up to 16 cameras
- Power LED indicator for each channel
- Can transfer HD analog video up to 1,476ft (450m)
- Use any external low-voltage power supply
- Rack-mountable using included brackets
- ?720p HD-CVI video; other formats will have different maximum ranges
Specifications
Specifications
Seco-Larm - EB-P316-60MQ - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | EB-P316-60MQ |
| Item Description | 16 Channel Video/Power/Data Passive Midpoint Combiner |
| Type | Passive Midpoint |
| Channels | 16 |
| Video Range – CVBS | 984’ (300m) |
| Video Range – HD-AHD | 720p: 1050’ (320m); 1080p: 722’ (220m) |
| Video Range – HD-CVI | 720p: 1476’ (450m); 1080p: 820’ (250m) |
| Video Range – HD-TVI | 720p/1080p: 820’ (250m) |
| Video Format | NTSC, PAL, SECAM |
| Maximum Input | 1.0Vp-p |
| Frequency Response | DC to 60MHz |
| CMMR | 60dB, 20kHz~60MHz |
| Wire Category | CAT5e~CAT6 |
| BNC Connection | Nickel-plated |
| Impedance – Coax | 75?@1MHz |
| Impedance – RJ45 | 100?@1MHz |
| Max. Amperage | 1A@12VDC/24VAC |
| Data Range | 2,400’ (800m) |
| DC Loop Resistance | 29?/1,000’ (9.5?/100m) |
| Differential Capacitance | 19pF/ft max (62pf/m max) |
| Output Voltage | - |
| Fuse | 1.5A max/CH |
| Input Power | - |
| Input Power Fuse | - |
| Operating Temperature | -14~140°F (-10~60°C) |
| Operating Humidity | 0~95%, non-condensing |
| Material | Steel |
| Weight | 1.93-lbs (876g) |
| Dimensions | 16-15/16" x 1-3/4" x 15/16" (430mm x 44mm x 33mm) |
| Type | Dvr |
| Mount Type | Rack |
| UNSPSC Code | 46171621 |
| Category | CCTV |
