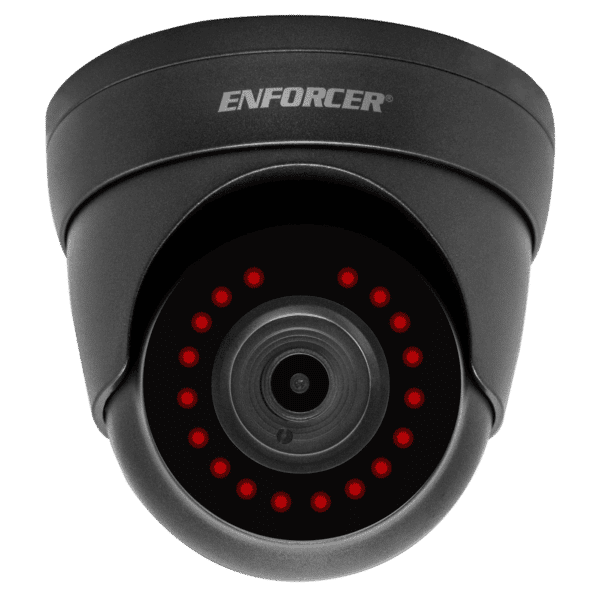

Seco-Larm EV-Y2501-A2GQ | 4-in-1 HD TVI, CVI, AHD, Analog Fixed Turret Camera
Regular price
$63.96
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm EV-Y2501-A2GQ | 4-in-1 HD TVI, CVI, AHD, Analog Fixed Tur...
Regular price
$63.96
Unit price
Brand: Seco-Larm Usa
|
SKU:
10118930
Regular price
$63.96
Unit price
Shipping calculated at checkout.
Description
Description
Seco-Larm EV-Y2501-A2GQ | 4-in-1 HD TVI, CVI, AHD, Analog Fixed Turret Camera
Seco-Larm - EV-Y2501-A2GQ - Features
- 5MP Resolution
- ICR Module
- Joystick OSD control
- 2DNR (Digital Noise Reduction)
- D-WDR (Digital Wide Dynamic Range)
- Heavy-duty vandal-resistant design
- Rugged, weatherproof (IP66) construction
- Split-glass design eliminates IR reflection
- Cables concealed in bracket to prevent tampering
- Junction box is not included with the product
Specifications
Specifications
Seco-Larm - EV-Y2501-A2GQ - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | EV-Y2501-A2GQ |
| Item Description | 4-in-1 HD TVI, CVI, AHD, Analog Fixed Turret Camera |
| Housing color | Gray |
| Formats | TVI (Default) / CVI / AHD / Analog (CVBS) |
| CMOS | 1/2.7? 5MP CMOS |
| Resolution (HD) | 2592×1944 |
| 2DNR | Yes |
| D-WDR | Yes |
| OSD (On-Screen Display) | Yes |
| Cable OSD control | Yes |
| Megapixels | 5MP |
| Lens | 2.8mm ICR |
| Viewing Angle | 121° |
| # of IR LEDs | 18 (SMT) |
| IR Range | Up to 65ft (20m) |
| FPS | 20FPS |
| F Stop | 2.0 |
| Minimum illumination – IR On | 0Lux |
| Minimum illumination – IR Off | 0.05Lux |
| S/N Ratio | 35dB |
| Shutter control | Auto |
| Gain control | Auto |
| Operating voltage | 12VDC |
| Current Draw – IR On | 320mA |
| Current Draw – IR Off | 80mA |
| IP Rating | Weatherproof IP66 |
| Operating temperature | -22°~131° F (-30°~55° C) |
| Dimensions | ø3-15/16?x3-9/16? (ø100×90 mm) |
| Weight | 16.72-oz (474g) |
| Lens Type | Fixed |
| Position Type | Fixed |
| Signal Process | Analog |
| UNSPSC Code | 46171610 |
| Category | CCTV |
