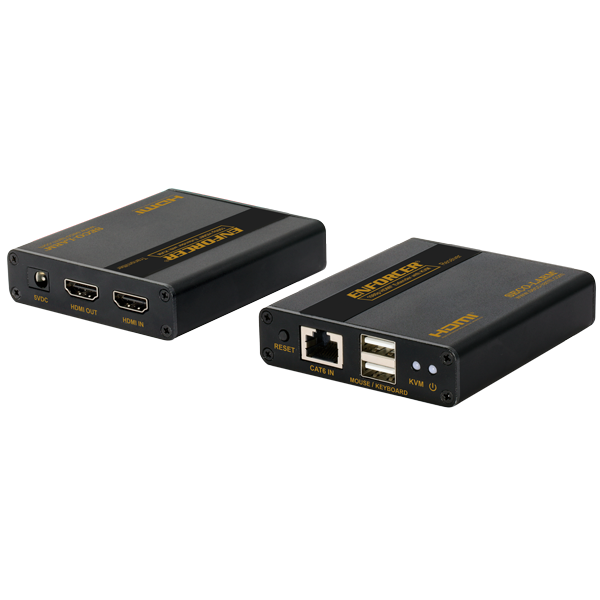

Seco-Larm MVE-AH1E1-01UQ | HDMI Extender with KVM - 1080p
Regular price
$143.67
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm MVE-AH1E1-01UQ | HDMI Extender with KVM - 1080p
Regular price
$143.67
Unit price
Brand: Seco-Larm Usa
|
SKU:
10367736
Regular price
$143.67
Unit price
Shipping calculated at checkout.
Description
Description
Seco-Larm MVE-AH1E1-01UQ | HDMI Extender with KVM - 1080p
Range up to 230ft (70m). Connect HDMI equipment using low-cost Cat6 UTP cable.
Seco-Larm - MVE-AH1E1-01UQ - Features
- Display up to 1080p
- Zero latency transmission up to 230ft (70m) over single Cat6/7
- Supports USB keyboard and mouse (KVM)
- Supports point to point connections
- Transmitter includes HDMI loop-out
- Lightning Protection, surge protection, and ESD protection.
- Receiver has L/R audio output
Specifications
Specifications
Seco-Larm - MVE-AH1E1-01UQ - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | MVE-AH1E1-01UQ |
| Item Description | HDMI Extender with KVM - 1080p |
| Input video signal | 3.3V |
| Input DDC signal | 5Vp-p (TTL) |
| Maximum single link range | 230ft (70m) |
| Video formats supported | High-speed HDMI, HDCP 1.4 |
| Audio formats supported | PCM, LPCM, DTS-HD, DTS-Audio |
| Output Video | HDMI |
| Resolutions supported | 1080p,1080i, 720p, 576p, 576i, 480p, 480i, 1920×1080, 1680×1050, 1440×900, 1366×768, 1280×960, 1280×720, 1024×768, 800×600 |
| Range (Cat6/6A/7) | Up to 230ft (70m) |
| Video input connector | HDMI Type A 19-pin female |
| Maximum input cable length | 26ft (8m) AWG24 |
| Video output connector | HDMI Type A 19-pin female |
| Maximum output cable length | 26ft (8m) AWG24 |
| Cat6 Wiring standard | T-568B |
| Operating voltage | 5VDC |
| Power supply | 5VDC@1A |
| ESD Protection | ±8kV (air-gap discharge), ±4kV (contact discharge) |
| Current Draw | Transmitter & Receiver: 2.5W |
| Operating humidity | 0~90% |
| Operating temperature | -4°~140° F (-20°~60° C) |
| Dimensions | 2-15/16?x3-3/8?x3/4? (74x85x19 mm) |
| Weight | 6.3-oz (180g) |
| UNSPSC Code | 43222608 |
| Category | Audio/Video |
