Brand: Seco-Larm Usa | SKU: 10367737

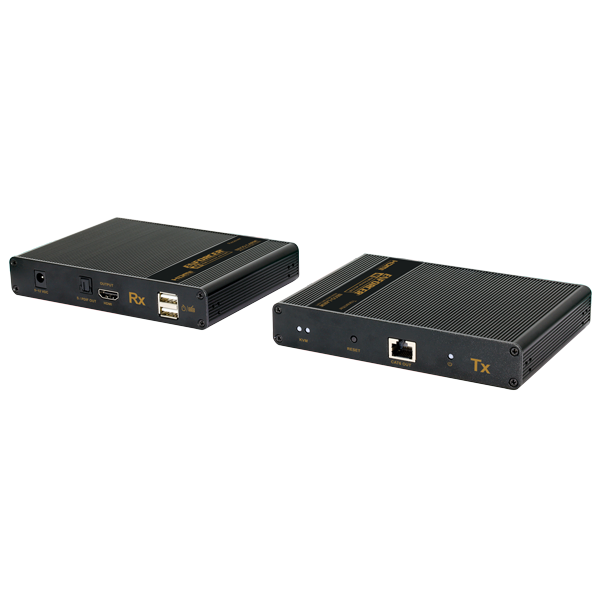

Seco-Larm MVE-AH1E1-42UQ | HDMI Extender with KVM - 4K

Name: Seco-Larm MVE-AH1E1-42UQ | HDMI Extender with KVM - 4K
Brand: Anixter
SKU: 10367737
Price: 235.23 USD
Availability: InStock

$235.23

Shipping calculated at checkout.

Description

Range up to 230ft (70m). Connect HDMI equipment using low-cost Cat6 UTP cable.

Display up to 4K@60Hz
Zero latency transmission up to 230ft (70m) over single Cat6/7
Supports USB keyboard and mouse (KVM)
Supports point to point connections
Transmitter includes HDMI loop-out
Lightning Protection, surge protection, and ESD protection.
Receiver has an optical S/PDIF out if an AVR or sound bar is fitted in the remote location

Brand Name	Seco-Larm
Manufacturer Part Number	MVE-AH1E1-42UQ
Item Description	HDMI Extender with KVM - 4K
Input video signal	3.3V
Input DDC signal	5Vp-p (TTL)
Maximum signal link range	230ft (70m)
Video formats supported	High-speed HDMI, HDCP 2.2
Audio formats supported	LPCM, DTS HD, DTS Audio, Dolby Digital 5.1CH
Output Video	HDMI
Resolutions supported	4K@60Hz, 4K@30Hz, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i, 1680×1050, 1680×1050, 1600×900, 1366×768, 1360×768, 1280×960, 1280×800, 1280×720, 1024×768, 800×600
Range (Cat6/6A/7)	Up to 230ft (70m)
Video input connector	HDMI Type A 19-pin female
Maximum input cable length	26ft (8m) AWG24
Video output connector	HDMI Type A 19-pin female
Maximum output cable length	26ft (8m) AWG24
Cat6 Wiring standard	T-568B
Operating voltage	5~12 VDC
Power supply	5VDC@2A
ESD Protection	±8kV (air-gap discharge), ±4kV (contact discharge)
Current Draw	Transmitter & Receiver: 4W
Operating humidity	0~90%
Operating temperature	-4°~140° F (-20°~60° C)
Dimensions	5-13/16?x4-1/2?x1? (148x105x25 mm)
Weight	9.2-oz (260g)
UNSPSC Code	43222608
Category	Audio/Video
