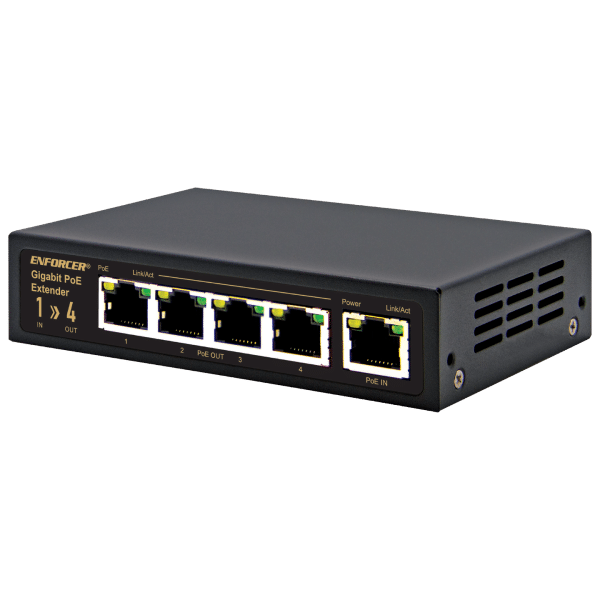

Seco-Larm NR-P401E-TQ | 1-Input to 4-Outputs Gigabit PoE+ Extender
Regular price
$82.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm NR-P401E-TQ | 1-Input to 4-Outputs Gigabit PoE+ Extender
Regular price
$82.24
Unit price
Brand: Seco-Larm Usa
|
SKU:
10118970
Regular price
$82.24
Unit price
Shipping calculated at checkout.
Description
Description
Seco-Larm NR-P401E-TQ | 1-Input to 4-Outputs Gigabit PoE+ Extender
Seco-Larm - NR-P401E-TQ - Features
- Extends the range of PoE devices an additional 328ft (100m) with Cat5e cables or higher
- Maximum extended range of up to 984ft (300m) using two extenders
- Connects 10/100/1000BASE-T PoE devices including IP cameras, IP access control, VOIP, IP speakers/intercoms, etc.
- Supports up to gigabit transmission rates
- Passive operation – no external power required and easy plug-and-play installation
- Automatically detects PoE equipment and protects from damage due to faulty installation
- Surge protection for both data and power ports
- 4 Output ports for up to 4 PoE devices
Specifications
Specifications
Seco-Larm - NR-P401E-TQ - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | NR-P401E-TQ |
| Item Description | 1-Input to 4-Outputs Gigabit PoE+ Extender |
| Connections | PoE In: 1x Shielded RJ45 |
| PoE Out: 4x Shielded RJ45 | Transmission range – 656ft (200m) |
| Power Input: 15W, Power Output: 4-port11.1WPower Input: 30W, Power Output: 4-port19WPower Input: 60W, Power Output: 4-port40WPower Input: 90W, Power Output: 4-port40W | Data link |
| Both pin 1/2, 3/6 and 4/5, 7/8 | Power link |
| Pin 1/2(+), 3/6(–) up to 12W/4 PSE, 25W/2 PSE | Network cables |
| Shielded Cat-5e or higher | Ethernet speed |
| 10/100/1000 Mbps half/full duplex | PoE standard |
| IEEE 802.3af, | LED Indicators |
| Power: Yellow | PoE: Yellow |
| Data link: Green, steady | Data transmit: Green, flashing |
| Operating humidity | 90% (maximum, non-condensing) |
| Operating temperature | 14°~113° F (-10°~45° C) |
| Dimensions | 4-11/16?x1-1/8?x3-3/8? (119x28x85 mm) |
| Weight | 8.8-oz (250g) |
| UNSPSC Code | 43222600 |
