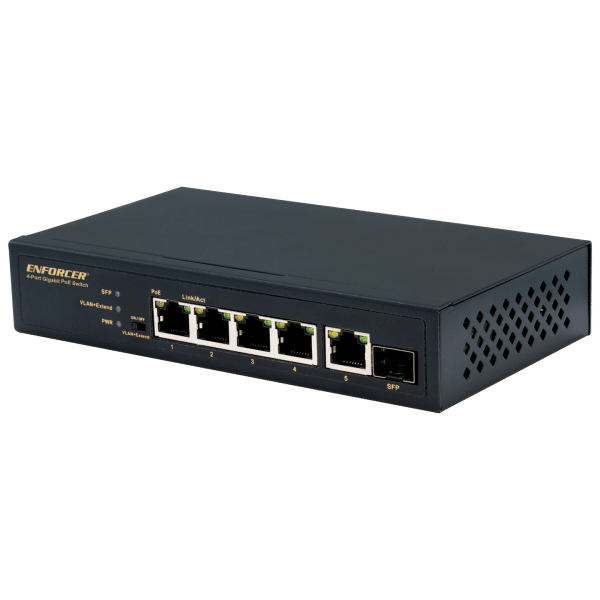

Seco-Larm NS-504UT-GAQ | 4-Port Gigabit Unmanaged PoE+ Switch
Regular price
$86.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm NS-504UT-GAQ | 4-Port Gigabit Unmanaged PoE+ Switch
Regular price
$86.15
Unit price
Brand: Seco-Larm Usa
|
SKU:
10407559
Regular price
$86.15
Unit price
Shipping calculated at checkout.
Description
Description
Seco-Larm NS-504UT-GAQ | 4-Port Gigabit Unmanaged PoE+ Switch
Seco-Larm - NS-504UT-GAQ - Features
- Provides both Ethernet data and power to multiple PoE devices including IP cameras, IP access, IP speakers/intercoms, VOIP, etc.
- Specially designed for video transmission with fast packet forwarding capability for clear images and smooth transmission
- Easy plug-and-play installation
- Supports up to 10/100/1000BASE-T
- IEEE 802.3x flow control
Specifications
Specifications
Seco-Larm - NS-504UT-GAQ - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | NS-504UT-GAQ |
| Item Description | 4-Port Gigabit Unmanaged PoE+ Switch |
| Operating voltage | 100~240 VAC |
| Power consumption | 5W |
| Ports | 4 Downlink, 1 uplink, 1 SFP |
| Ethernet speed | 10/100/1000Mbps (uplink, 1000Mbps) |
| Ethernet standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z |
| Transmission distance | 328ft (100m) |
| ‡ | PoE capacity |
| 60W | Switching capacity |
| 12Gbps | Transfer rate |
| 10Mbps:14,880pps | 100Mbps:148,800 |
| 1000Mbps:1,488,000 | MAC Address table |
| 2K | LED Indicators |
| Connection/transmission and PoE for each port, power | Operating humidity |
| 0~85% non-condensing | Operating temperature |
| 14°~122° F (-10°~40° C) | Dimensions |
| 6-5/8?x1-1/4?x3-11/16? | (168x32x94 mm) |
| Weight | 1-lb 5-oz (480g) |
