Brand: Seco-Larm Usa | SKU: 10327930

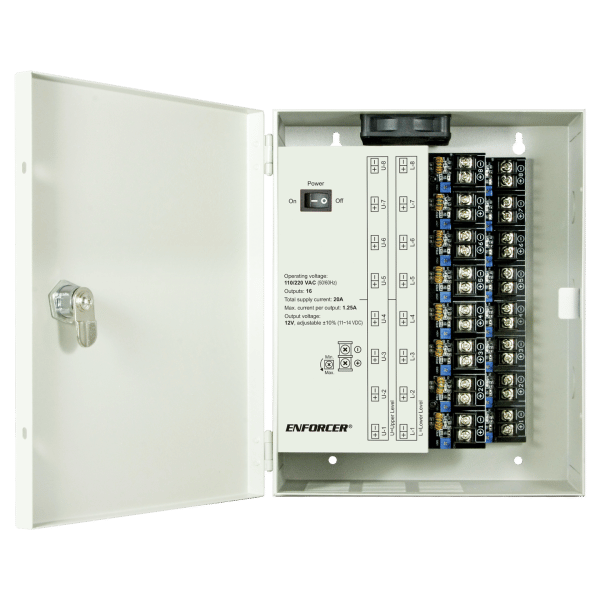

Seco-Larm PC-L1620-PQ | Low-Noise CCTV Power Supply

$161.47

Description

Each output’s voltage individually adjustable to compensate for voltage drop
Low-noise design for all CCTV applications where filtered power is needed, such as 4K (8MP) HD CCTV cameras, non-PoE IP cameras, and analog cameras
110/220 VAC input with 6kV surge protection
Outputs independently grounded with integrated noise filter for better noise reduction
Outputs individually isolated and individually fused (2A PTC)
Individual output status LEDs
Heavy-duty steel case with cover and cam lock
Built-in short circuit and overheat protection

Brand Name	Seco-Larm
Manufacturer Part Number	PC-L1620-PQ
Item Description	Low-Noise CCTV Power Supply
Operating voltage	110/220 VAC (50/60 Hz)
Outputs	16
Total supply current	20A
Max. current per output	1.25A
Output fuse	2A PTC (Per-channel)
Output voltage	12VDC ±5%
Efficiency	80%
LED indicators	Individual, per output, red indicates powered
Operating humidity	95% (non-condensing)
Operating temperature	32°~104° F (0°~40° C)
Dimensions	8?x9-3/16?x3-15/16? (204x250x100 mm)
Weight	6-lb (2.71kg)
UNSPSC Code	39120000
