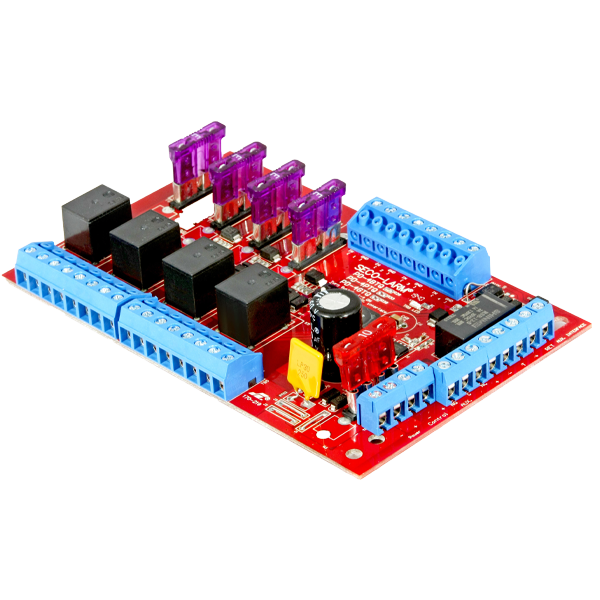

Seco-Larm PD-4BTQ | Access Power Controller Board, 4-Outputs
Regular price
$71.80
Unit price
Brand: Seco-Larm Usa
|
SKU:
10118927
Regular price
$71.80
Unit price
Description
Description
Seco-Larm PD-4BTQ | Access Power Controller Board, 4-Outputs
Seco-Larm - PD-4BTQ - Features
- For 12/24 VAC/VDC operation
- Each output individually fused
- Each output can operate in both fail-safe and fail-secure modes
- Each output individually controlled
- Individual output relays (10A@24VDC)
- Output fuses rated at 3.0A (PTC@2.5A)
- Individual status LEDs for each output and for emergency input
- Auxiliary supervision relay (1A@28VDC)
- Equipped with dry and wet trigger inputs
- Includes auxiliary interface to enable emergency egress, alarm monitoring, or to trigger other devices
- Includes auxiliary interface disconnect, individually selectable for each output
- Compatible with ENFORCER Access Control Power Supplies
Specifications
Specifications
Seco-Larm - PD-4BTQ - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | PD-4BTQ |
| Item Description | Access Power Controller Board, 4-Outputs |
| Input voltage | 12/24 VAC/VDC |
| Input current draw | 10A@24VAC |
| Number of outputs | 4 |
| Output fuse type/rating | Blade 3.0A |
| Output relays | Form C (10A@12VDC) |
| Auxiliary interface output | DPDT (1A@28VDC) |
| LED – Status | 4 (red, on when relay is energized) |
| LED – Auxiliary Interface | 1 (green on when auxiliary input is triggered, alarm condition) |
| Operating humidity | 0~95% |
| Operating temperature | -40°~167° F (-40°~75° C) |
| Dimensions | 5-3/8?x3-5/8?x15/16? (136x92x23 mm) |
| Weight | 4.8-oz (137g) |
| Number Of Readers | 24 |
| UNSPSC Code | 43211700 |
| Category | Access |
