Description
Description

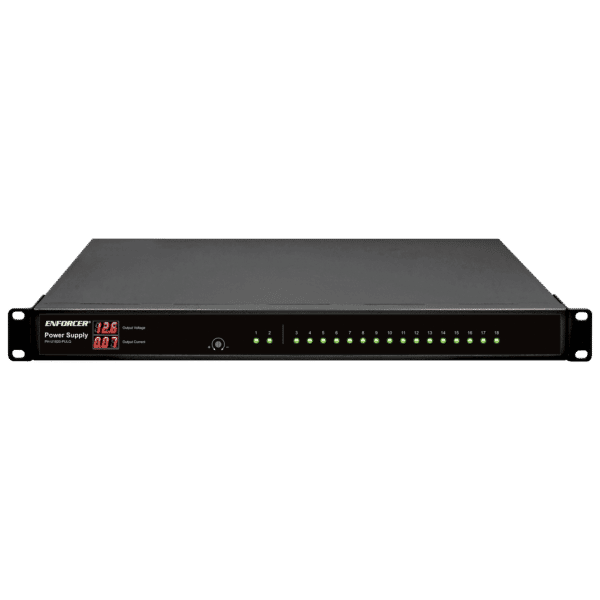

Seco-Larm PH-U1820-PULQ | Rack-Mount DC CCTV Power Supply - 18 Outputs, 20 Amps
Seco-Larm - PH-U1820-PULQ - Features
- 18 Outputs, 20A total
- PTC fuse protected outputs, 16 outputs at 1.6A and 2 outputs at 5A
- 11.7~13.6 VDC field-adjustable output
- 110/220 VAC Input with selection switch
- LCD Display of output voltage and total output current
- LED Status indicators for each output
- Removable screw terminal blocks for convenient installation and reliable connections
- For rack mounting or stacking on a shelf
- Compact 1U size fits standard racks
- Attractive, high-tech industrial design
- ?Positive temperature coefficient
Specifications
Specifications
Seco-Larm - PH-U1820-PULQ - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | PH-U1820-PULQ |
| Item Description | Rack-Mount DC CCTV Power Supply - 18 Outputs, 20 Amps |
| Input Voltage | 110~220 VAC |
| Fuse type | PTC* |
| Adjustable Output Voltage Range | 11.7~13.6 VDC |
| Number of Outputs | 18 |
| Max. Current per Output | Ch. 1~2: 5A Ch. 3~18: 1.6A |
| Total Supply Current | 20A@12VDC max. |
| Dimensions | 1-3/4? x 17-1/2? x 7-7/8? (45 x 445 x 200 mm) |
| Rack-Mount Height | 1U |
| Weight | 5-lb 7-oz (2.47kg) |
| UNSPSC Code | 46171500 |
| Category | Access |
