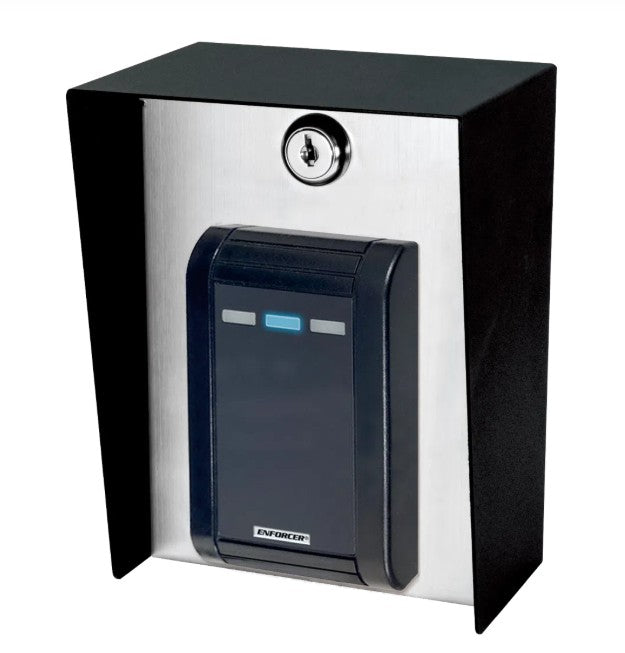

Seco-Larm PR-B9124-P1 | Bluetooth Access Controller – Post-Mount Proximity Reader
Integrated Bluetooth® wireless technology in a rugged, post-mount enclosure with a unique hinged faceplate for easy access to the terminal block. No codes to remember and an intuitive app design for easy, visual programming as well as convenience and security for the user and administrator. All data is secured on the device without the risks inherent in an internet connection.
Seco-Larm - PR-B9124-P1 - Features
- No Codes to Remember – Intuitive, visual app-based programming and management, 1,000 users, device options, etc.
- No Cloud, No Internet Exposure – All data secured locally on device, set and monitored by the administrator
- App-Based Programming – No complicated software to install, no subscription fees
- More Than Access – Control doors, gates, lighting, machinery, etc.
- Secure, Integrated Bluetooth – Passcode protected, AES 128
- Easy Installation – No control panel necessary
- Output Modes – Timed relock (1~1,800 seconds), continually unlocked or locked, toggle
- Hold Open – Hold door open with code or app (customizable)
- User Customization – Individually customizable output mode / time
- Multiple User Types – Permanent, scheduled, temporary, # of times
Specifications
Specifications
Seco-Larm - PR-B9124-P1 - Specifications
| Operating voltage | 9~25 VDC |
|---|---|
| Current draw (max.) | Standby: 55mA@12VDC, 30mA@24VDC, Active (max.): 100mA@12VDC, 55mA@24VDC |
| Outputs | Form C: 2.5A@24VDC, Tamper alarm: 100mA@30VDC (solid state N.C.) |
| Egress input | N.O. Ground |
| Door sensor input | N.C. Ground |
| Proximity reader | EM 125kHz |
| IP Rating | IP65 Weatherproof |
| Material | Housing: 5/64? (2mm) Anodized steel, powder paint |
| Faceplate: | Stainless steel |
| Reader: | ABS Plastic |
| Operating humidity | 0-95%, non-condensing |
| Operating temperature | -4°~122° F (-20°~50° C) |
| Dimensions | 5?x6-111/16?x3-11/16? (128x170x94 mm) |
| Weight | 2-lb 7-oz (1.1kg) |
