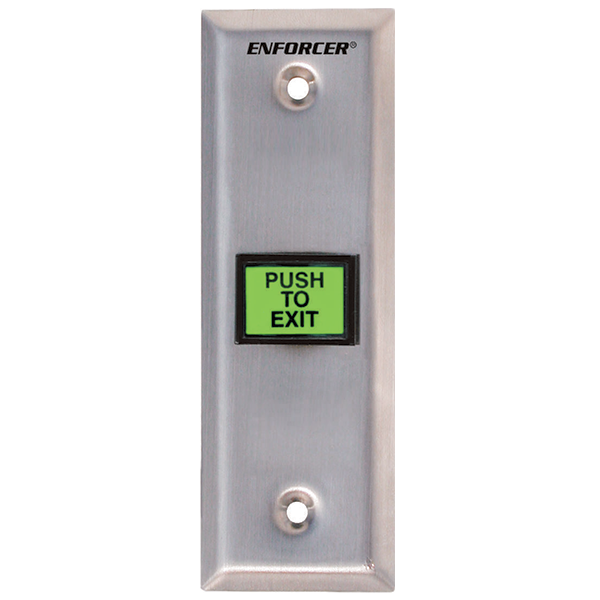

Seco-Larm SD-7103GC-PEQ | Illuminated RTE Plate - Slimline

Seco-Larm - SD-7103GC-PEQ - Features

• ETL, Conforms to UL Std. 294
• Square illuminated push button with caption “PUSH TO EXIT"

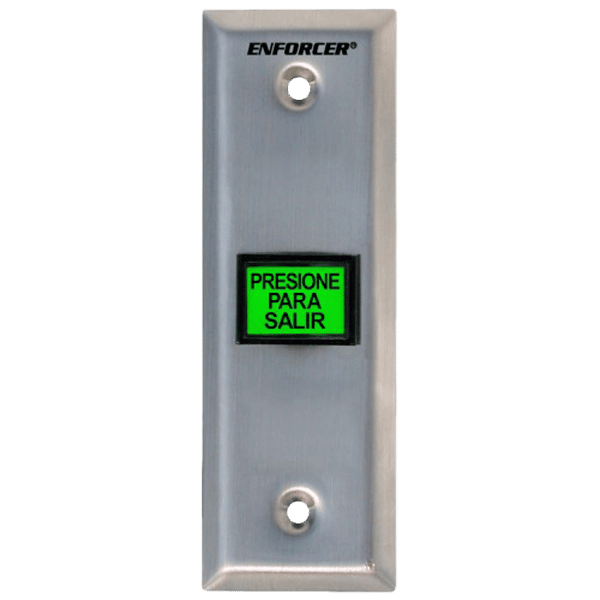

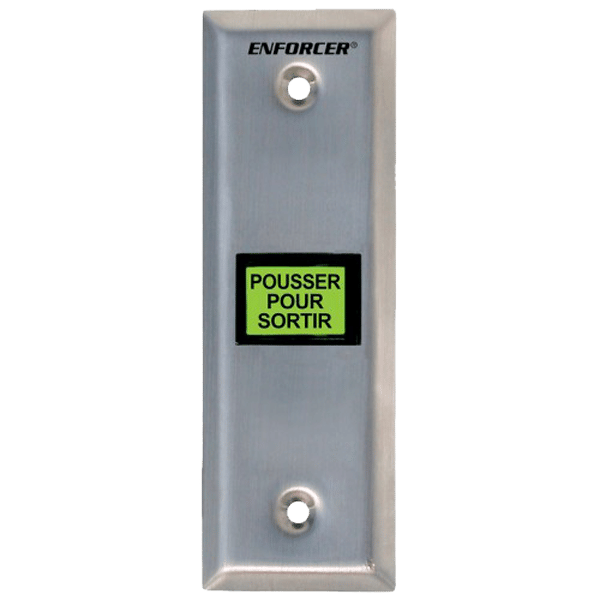

• Message language can be easily changed in the field to Spanish or French
• CE and UL approved switch is rubber-sealed to prevent liquid penetration
• Includes stainless-steel slimline plate
• Includes six colored 12-inch wire leads with easyto-attach spade lugs for fast installation
• Long-life green LED 12/24 VAC/VDC (~35,000hr)
• Weather resistant when properly installed
• Momentary switch, DPST, NO/NC contacts rated 5A@24VAC max.
• UL 294 Access control levels
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
