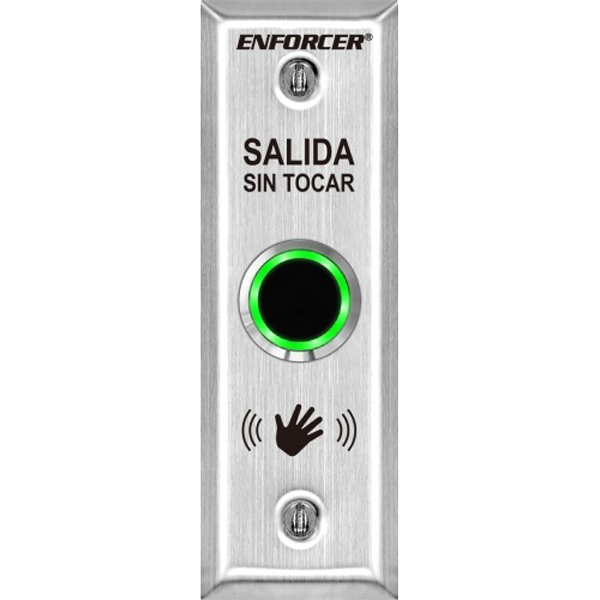

Seco-Larm SD-9163-KS1Q | Outdoor Wave-to-Open Sensor - Slimline - Spanish
Seco-Larm - SD-9163-KS1Q - Features
- Adjustable sensor range up to 7? (18cm)
- Weatherproof (IP65) for outdoor use
- Stainless steel plate
- 1.2A relay, adjustable trigger duration 0.8~30 seconds or toggle
- LED illuminated sensor area for easy identification
- Selectable LED colors (turns from red to green or green to red) to show sensor activated
- ?When properly installed
Specifications
Specifications
Seco-Larm - SD-9163-KS1Q - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | SD-9163-KS1Q |
| Item Description | Outdoor Wave-to-Open Sensor - Slimline - Spanish |
| Operating temperature | 12~24 VDC |
| Current draw (max. ±10%) | Standby red (12/24 VDC): 13mA / 15mA |
| Triggered green (12/24 VDC): 21mA / 25mA | Standby green (12/24 VDC): 12mA / 14mA |
| Triggered red (12/24 VDC): 23mA / 28mA | Relay type |
| SPDT dry contact, 1.2A@24VDC | Response time |
| 10ms | LED |
| Standby: Red* | Triggered: Green* |
| Ouput duration | 0.8~30 s, toggle |
| Range | 2?~7? (5~18 cm) |
| Destructive attack level | Level I |
| Line security | Level I |
| Endurance level | Level IV |
| Standby power | Level I |
| IP Rating | Weatherproof, IP65 |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 1-1/2? x4-1/2?(39 x115 mm) |
| Weight | 2.2-oz (61g) |
| UNSPSC Code | 46171500 |
| Category | Access |
