Brand: Seco-Larm Usa
|
SKU:
10119019

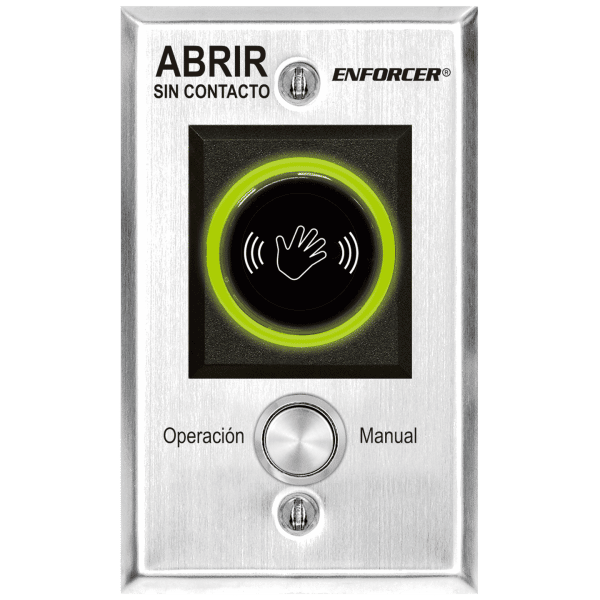

Seco-Larm SD-927PKC-NSVQ | Wave-To-Open Sensor with Manual Override Button - Spanish
Regular price
$52.21
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm SD-927PKC-NSVQ | Wave-To-Open Sensor with Manual Override...
Regular price
$52.21
Unit price
Brand: Seco-Larm Usa
|
SKU:
10119019
Regular price
$52.21
Unit price
Shipping calculated at checkout.
Description
Description
Seco-Larm SD-927PKC-NSVQ | Wave-To-Open Sensor with Manual Override Button - Spanish
Seco-Larm - SD-927PKC-NSVQ - Features
- ETL, Conforms to UL Std. 294
- Dual voltage, 12~24 VAC/VDC
- Range adjustable from 2-3/8?~8? (6~20 cm)
- Stainless steel single-gang plate
- 3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
- LED illuminated sensor area for easy identification
- Quick connect screw-less terminal block
- Selectable LED colors (turns from red to green or green to red) when activated
- Adds manual override button as a backup to the sensor
Specifications
Specifications
Seco-Larm - SD-927PKC-NSVQ - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | SD-927PKC-NSVQ |
| Item Description | Wave-To-Open Sensor with Manual Override Button - Spanish |
| Operating voltage | 12~24 VAC/VDC |
| Current Draw | 120mA@12VDC |
| Relay type | Form C dry contact, 3A@24VDC |
| Override button | Switching capacity: 3A@24VDC |
| Mechanical life: 500,000 cycles | Response time |
| 10ms | LEDs |
| Standby: Red | Triggered: Green |
| Output duration | Adjustable, 0.5~30 sec., toggle, or as long as sensor is triggered |
| Sensing range | Adjustable, 2-3/8?~8? (6-20 cm) |
| Destructive attack level | Level I |
| Line security | Level I |
| Endurance level | Level IV |
| Standby power | Level I |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 4-1/2? x 2-3/4? x 1-5/16? (115 x 70 x 33.5 mm) |
| Weight | 3.9-oz (110g) |
| UNSPSC Code | 46171500 |
| Category | Access |
