Brand: Seco-Larm Usa
|
SKU:
10206788

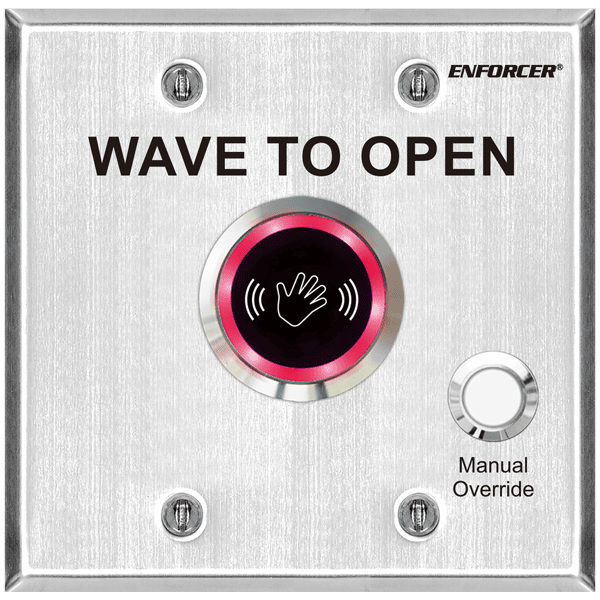

Seco-Larm SD-9463-KSVQ | Outdoor Double-Gang Wave-to-Open Sensor with Manual Override
Regular price
$121.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm SD-9463-KSVQ | Outdoor Double-Gang Wave-to-Open Sensor wi...
Regular price
$121.49
Unit price
Brand: Seco-Larm Usa
|
SKU:
10206788
Regular price
$121.49
Unit price
Shipping calculated at checkout.
Description
Description
Seco-Larm SD-9463-KSVQ | Outdoor Double-Gang Wave-to-Open Sensor with Manual Override
Seco-Larm - SD-9463-KSVQ - Features
- Clean and simple no-touch operation reduces the risk of cross-contamination
- Adjustable sensor range up to 7? (18cm)
- Weatherproof (IP65) for outdoor use†
- 1.2A Relay, adjustable duration 0.8~30 seconds or toggle
- Manual override button functions during a power failure
- LED-illuminated sensor area for easy identification
- Selectable LED colors (turns from red to green or green to red) on sensor activation
- Stainless steel plate
Specifications
Specifications
Seco-Larm - SD-9463-KSVQ - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | SD-9463-KSVQ |
| Item Description | Outdoor Double-Gang Wave-to-Open Sensor with Manual Override |
| Type | “Wave-to-Open" Request-to-Exit Plates with Adjustable Delay Timer, for Outdoor Use |
| Current Draw | Standby- 16mA@12VDC / 25mA@24VDC, Triggered- 25mA@12VDC / 32mA@24VDC |
| Sensing Range | 2?~7? (5~18cm) |
| Operating Voltage | 12~24 VDC |
| Reaction time | 10mS |
| LEDs – Red | Standby (Colors are reversible.) |
| LEDs – Green | Triggered (Colors are reversible.) |
| Relay Type | Form C dry contact 1A@30VDC |
| Output Time | 0.5~30 s, toggle |
| Switching Capacity | 1.2A@24VDC |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 5-1/2? x 4-1/2? x 1-1/2? (140 x 114 x 39 mm) |
| Weight | 5.6-oz (160g) |
| IP Rating | Weatherproof IP65 |
| UNSPSC Code | 39120000 |
| Category | Access |
