Description
Description

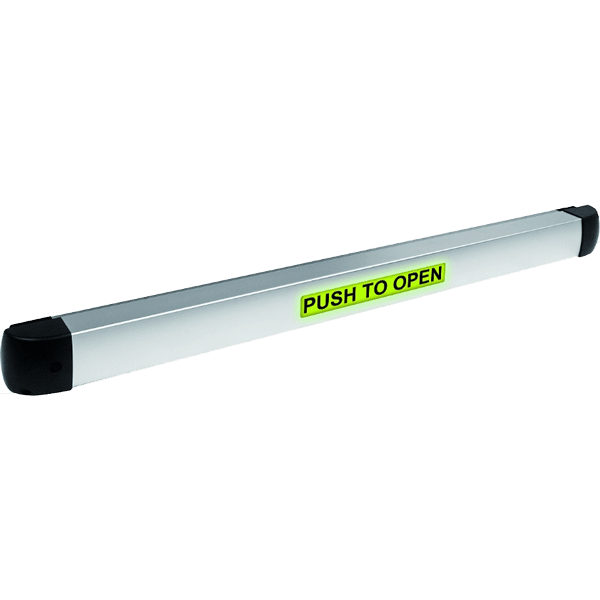

Seco-Larm SD-961A-36SLQ | Illuminated Push-to-Open Bar
Seco-Larm - SD-961A-36SLQ - Features
- Provides convenient on-door egress
- LED makes it easy to see the status
- Can be stand-alone or connected to an access control system
- Dogging – standard dogging with hex key
- For 36? doors – actual length: 337/16" (85cm)
- Can be cut to fit smaller doors, minimum 235/8" (60cm)
- Two built-in non-latching (momentary), dual-contact switches (NO/NC/COM) rated at ?5A@230VAC, adjustable 0.5~60 sec
- Large LED shows red in standby and green when triggered, but is programmable red/green/blue by an access control panel
- Blinking LED and buzzer programmable for relock warning
- Built-in buzzer indicates unlocked (selectable, up to 92dB)
Specifications
Specifications
Seco-Larm - SD-961A-36SLQ - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | SD-961A-36SLQ |
| Item Description | Illuminated Push-to-Open Bar |
| Operating voltage | 12~24 VDC |
| Power consumption | 180mA@12VDC, 140mA@24VDC (max.) |
| Contact load | ?5A@230VAC |
| Outputs | NO/NC/COM x2 |
| Trigger duration | 0.5~60 seconds (adjustable) or dogged open |
| Buzzer | Up to 92dB (adjustable) |
| LED Indicators – Colors | Stand-alone red/green, Controlled red/green/blue |
| LED Indicators – Size | 8-1/4?x1? (210×25 mm) |
| Door width | 36? (91.4cm), minimum 23-5/8? (60cm) |
| Door Size | 32°~150° F (0°~70° C) |
| Dimensions | 33-7/16?x2-3/8?x2-3/8? (850x61x61 mm) |
| Weight | 4-lb 10-oz (2.1kg) |
| UNSPSC Code | 46171500 |
| Category | Access |
