Brand: Seco-Larm Usa
|
SKU:
10363751
Seco-Larm SD-962BR-36G | Rugged Grade 1 Rim-Type Exit Device, Push-to-Exit Bar - Black
Regular price
$408.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm SD-962BR-36G | Rugged Grade 1 Rim-Type Exit Device, Push-...
Regular price
$408.14
Unit price
Brand: Seco-Larm Usa
|
SKU:
10363751
Regular price
$408.14
Unit price
Shipping calculated at checkout.
Description
Description

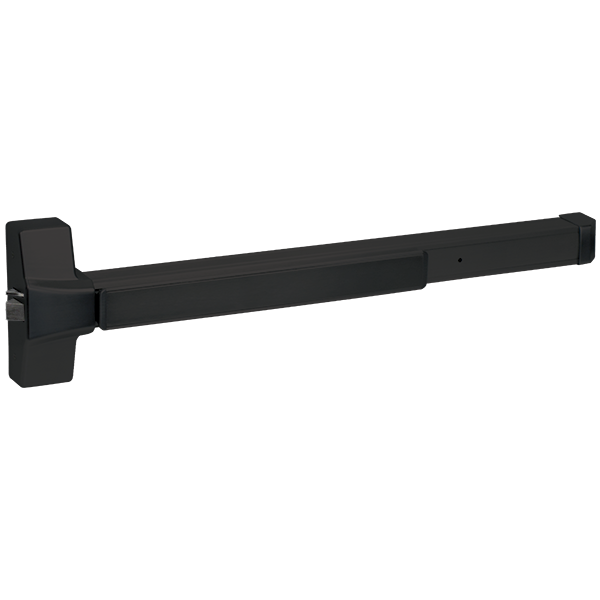

Seco-Larm SD-962BR-36G | Rugged Grade 1 Rim-Type Exit Device, Push-to-Exit Bar - Black
Rim-type, dead latch for additional security, reversible, bar can be locked open. UL Listed, Black.
Seco-Larm - SD-962BR-36G - Features
- Pushbar is UL Listed for U.S. and Canada
- Heavy-duty ANSI Grade 1 steel construction
- Allows exit from inside while locked from outside
- Reversible non-handed design
- UL Listed, ANSI/BHMA A156.3 – (2008) requirements for Grade 1, UL 305?
- For metal or wood doors up to 13/4" (44mm) thick
- Separate deadlocking latch prevents the use of credit cards or similar means to open the latch bolt
- Allen-type 1/4-turn dogging lock allows the exit device to be unlocked for extended periods of time
- Includes all needed hardware for typical installations
- Works with standard external door handle/lock devices such as the SD-962HL-4A (not included)
- Fits doors from 33? (84cm) to 48? (122cm) wide
Specifications
Specifications
Seco-Larm - SD-962BR-36G - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | SD-962BR-36G |
| Item Description | Rugged Grade 1 Rim-Type Exit Device, Push-to-Exit Bar - Black |
| Construction | ANSI Grade 1 steel |
| Door Type | Up to 1-3/4? (44mm) thick, wood or metal |
| Hand Type | Non-handed |
| Latch Bolt | Stainless-steel, 3/4? (19mm) throw |
| Dead Latch | Stainless-steel 5/8? (16mm) |
| Strike | For 5/8? (16mm) stop |
| Spring | Stainless steel |
| Chassis | Plated steel |
| Cover | Plated zinc cast |
| Rail Assembly | Aluminum |
| End Cap | Plated zinc cast |
| Dogging | Hex-type dogging standard |
| Dimensions | 33?x8?x2-3/16? (838x203x56 mm) |
| Weight | 9-lb 12-oz (4.4kg) |
| UNSPSC Code | 46171500 |
| Category | Access |
