Brand: Seco-Larm Usa | SKU: 10207176

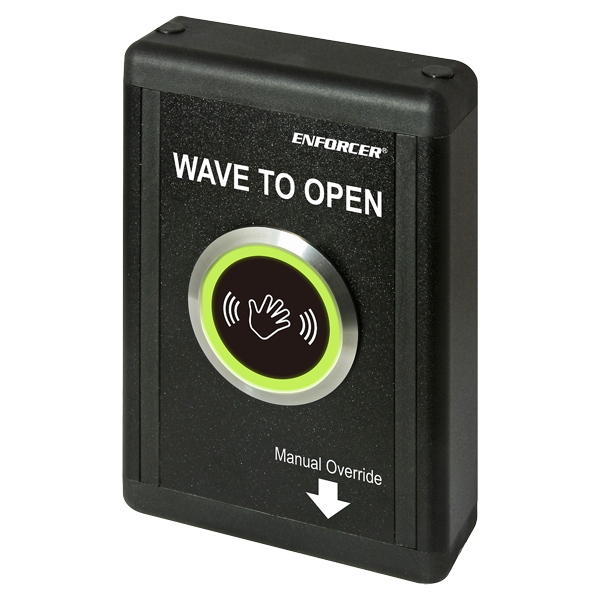

Seco-Larm SD-9773-KNEVQ | Surface-Mount Wave-to-Open Sensor with Manual Override Button

$101.30

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Seco-Larm SD-9773-KNEVQ | Surface-Mount Wave-to-Open Sensor with Manual Override Button

Seco-Larm - SD-9773-KNEVQ - Features

Adjustable sensor range up to 6? (15cm)
1A relay, adjustable trigger duration 0.5~30 seconds or toggle
LED illuminated sensor area for easy identification
Selectable LED colors (turns from red to green or green to red) when sensor is activated
Aluminum alloy and ABS plastic housing
IP54 Weather-resistant for outdoor use

Specifications

Seco-Larm - SD-9773-KNEVQ - Specifications

Brand Name	Seco-Larm
Manufacturer Part Number	SD-9773-KNEVQ
Item Description	Surface-Mount Wave-to-Open Sensor with Manual Override Button
Operating Voltage	12~24 VDC
Current Draw	Standby (red): 20mA@12VDC / 26mA@24VDC Triggered (green): 26mA@12VDC / 32mA@24VDC Standby (green):16mA@12VDC / 20mA@24VDC Triggered (red): 31mA@12VDC / 39mA@24VDC
Relay Type	SPDT dry contact, 1A@24VDC
IP Rating	Weatherproof IP54
Response Time	10ms
LEDs – Standby	Red (reversible to green)
LEDs – Triggered	Green (reversible to red)
Output Time	0.5~30 s, toggle
Range	1-9/16?~6? (4~15 cm)
Operating Temperature	-4°~131° F (-20°~55° C)
Weight	9.5-oz (270g)
Dimensions	3-1/8?x 4-1/2?x1-1/8? (80x115x28mm)
Category	Access

Documents and Downloads

Seco-Larm SD-9773-KNEVQ Product Information Sheet
