Brand: Seco-Larm Usa
|
SKU:
10119016

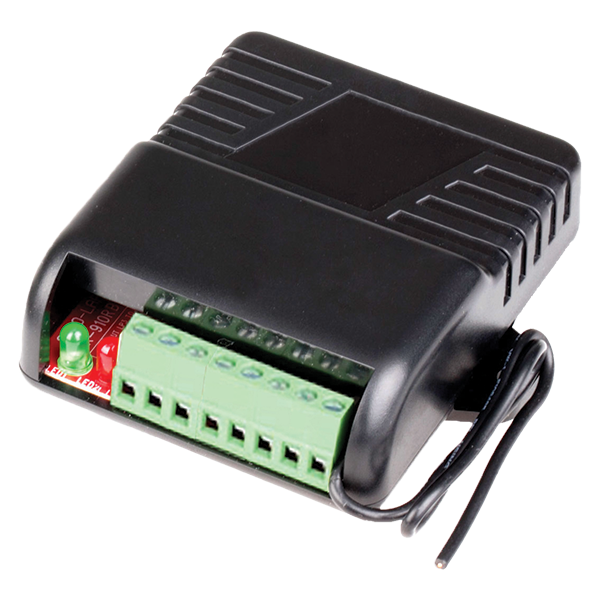

Seco-Larm SK-910RB2-4Q | 2-Channel RF Receiver, 11~24 VAC/DC, 433.92MHz, two relays
Regular price
$55.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm SK-910RB2-4Q | 2-Channel RF Receiver, 11~24 VAC/DC, 433.9...
Regular price
$55.27
Unit price
Brand: Seco-Larm Usa
|
SKU:
10119016
Regular price
$55.27
Unit price
Shipping calculated at checkout.
Description
Description
Seco-Larm SK-910RB2-4Q | 2-Channel RF Receiver, 11~24 VAC/DC, 433.92MHz, two relays
Seco-Larm - SK-910RB2-4Q - Features
- Five programmable relay output modes:
- 4-Second momentary
- 1-Second momentary
- Toggle (ON/OFF)
- Validity
- Latch
- 11~24 VAC/VDC Operation
- Range: Up to 500ft (150m)
- Controls garage doors, gates, house lights, alarm panels or other devices via remote
- LED indicates RF reception, learn mode entered, transmitter learned, memory cleared, and relay output mode
- Pushbutton programming, no need to cut jumpers
- Up to 15 transmitter button codes can be learned
- ?Operating range will vary greatly depending on the installation and operating environment.
Specifications
Specifications
Seco-Larm - SK-910RB2-4Q - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | SK-910RB2-4Q |
| Item Description | 2-Channel RF Receiver, 11~24 VAC/DC, 433.92MHz, two relays |
| Operating voltage | 11~24 VAC/VDC |
| Range | Up to 500? (150m) with SECO-LARM transmitter. Range will vary. |
| Output Mode | 4-Second momentary, toggle, latch, validity, 1-second momentary |
| Current Draw | 8mA@12VDC (standby), 30 mA per channel at 12 VDC (activated) |
| # of Stored Transmitter Codes | 15 per channel, 30 per receiver |
| Extended Range Antenna Compatible | Yes (SK-91ERSD) |
| Compatible Transmitters | Fixed Code: 68 Billion codes, CODEBUMP: 18 Quintillion codes |
| Connectors | 8 Quick-connect screw terminals (+, -, with NO/NC/COM for channel 1 and NO/NC/COM for channel 2) |
| Dimensions | 3-1/8? x 2-9/16? x 1? (80 x 65 x 25 mm) |
| Receiver Outputs | Two Form “C" dry relay contacts (N.O./N.C./COM); 10A@24VDC |
| Number Of Wires | 2 |
| UNSPSC Code | 46171500 |
| Category | Wireless |
