Brand: Seco-Larm Usa | SKU: 10396601

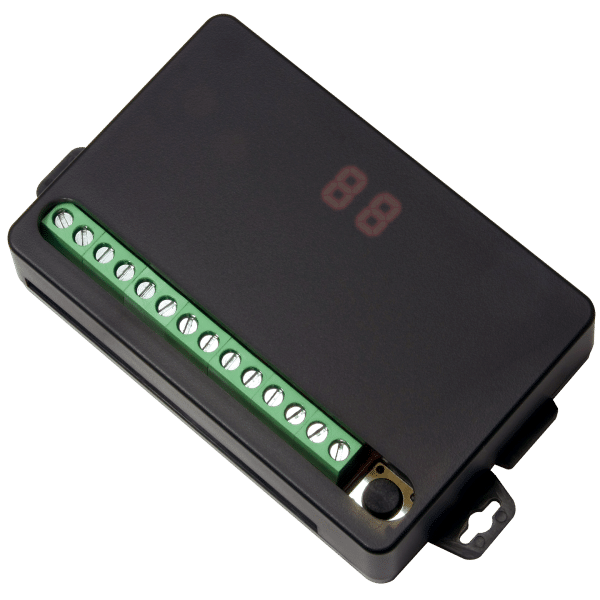

Seco-Larm SK-910RD4 | 4-Channel RF Receiver

$86.15

Description

Five programmable relay output modes – 0.5~99-second timed pulse, 1~99-minute timed pulse, toggle, latch, follow (validity)
Dual frequency operation – 315MHz is standard operation. Will also do 433.92MHz with use of optional Extended Range Antenna (SK-93ERSD)
Range: Up to 500ft (150m), or up to 1,000ft (300m) with optional Extended Range Antenna (SK-91ERSD)
Up to 60 transmitter button codes can be learned per channel
Alphanumeric display indicates learn mode entered, transmitter learned, memory cleared, RF reception, and relay output mode
Display hidden in semi-transparent case until lit
Pushbutton programming, no need to cut jumpers
Compatible with all ENFORCER transmitters of the same frequency
433.92MHz models are also available. Contact SECO-LARM for details
Operating range varies greatly depending on the installation and operating environment

Brand Name	Seco-Larm
Manufacturer Part Number	SK-910RD4
Item Description	4-Channel RF Receiver
Operating frequency	315MHz*
Memory capacity	60 per channel
Operating voltage	10~24 VAC/VDC
Standby: 16mA@12VDC, 12mA@24VDC	Active: 60mA@12VDC, 50mA@24VDC (both per channel)
Relay output	Type: Independent, sequence, access control
Modes: 1~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity)	Relay contacts
Number: 4	Rating: Form C 10A@14VDC
Connectors	Screw terminals, +, -, with NO/NC/COM per relay
Digital display	2-digit, 7-segment LED
Operating humidity	5~95%, non-condensing
Operating temperature	32°~167° F (0°~75° C)
Dimensions	4-3/16?x7/8?x2-3/8? (107x23x60 mm)
