Seco-Larm SM-4201-L6Q | Track-Mount Overhead Door Magnetic Contact, 3? (76mm) Gap, Open/Closed loop x2 (6 Wires)
Regular price
$55.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm SM-4201-L6Q | Track-Mount Overhead Door Magnetic Contact,...
Regular price
$55.37
Unit price
Brand: Seco-Larm Usa
|
SKU:
10367747
Regular price
$55.37
Unit price
Shipping calculated at checkout.
Description
Description

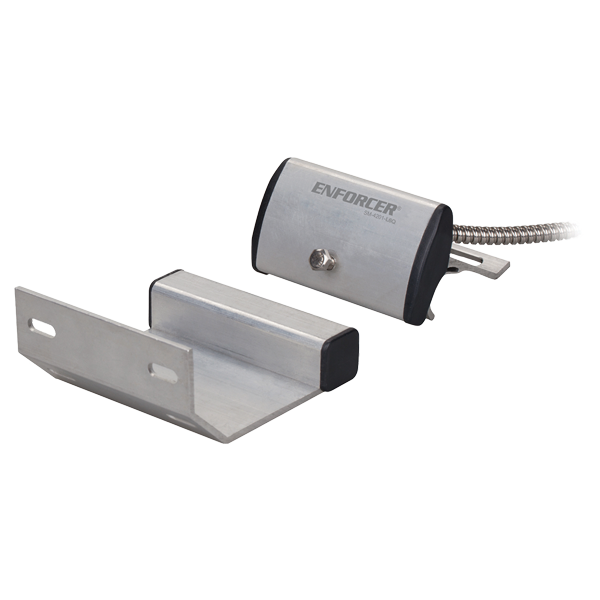

Seco-Larm SM-4201-L6Q | Track-Mount Overhead Door Magnetic Contact, 3? (76mm) Gap, Open/Closed loop x2 (6 Wires)
Rugged aluminum housing with 36" leads enclosed in armored cable. 3" Gap.
Seco-Larm - SM-4201-L6Q - Features
- Used for overhead doors in both industrial and residential situations where a wide gap is present
- Adjustable to fit most door-channel widths
- Rugged aluminum housing
- 36? (91cm) Wire leads enclosed in armored cable
- Contact Type: SPDT, iridium-plated to have a high melting point and Vickers hardness for higher power handling and longer expected life
- For open/closed loop circuits
- 3? (76mm) Gap
- IP65 Weatherproof
- Mounting bracket included
- Optional L-bracket (SM-8201-LWQ) available for door channels 2-1/2~4? (62x102mm), dimensions: 3?x2?x1-1/4? (76x51x32 mm)
- Lifetime limited warranty
Specifications
Specifications
Seco-Larm - SM-4201-L6Q - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | SM-4201-L6Q |
| Item Description | Track-Mount Overhead Door Magnetic Contact, 3? (76mm) Gap, Open/Closed loop x2 (6 Wires) |
| Loop Type | Open/Closed Loop |
| Operation Gap | 3? (76mm) |
| Material – Case | Aluminum |
| Material – Terminals | 36? (91cm) armored leads |
| Contacts | Iridium-plated |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 3-1/8?x2-5/8?x1-13/16? (79x66x46 mm) |
| Magnet Dimensions | 3-1/4?x3-9/16?x1-3/4? (82x90x44 mm) |
| Magnet Type | Ferrite |
| IP Rating | Weatherproof IP65 |
| Color | Aluminum |
| UNSPSC Code | 46171600 |
| Category | Security |
