Brand: Seco-Larm Usa
|
SKU:
10118925

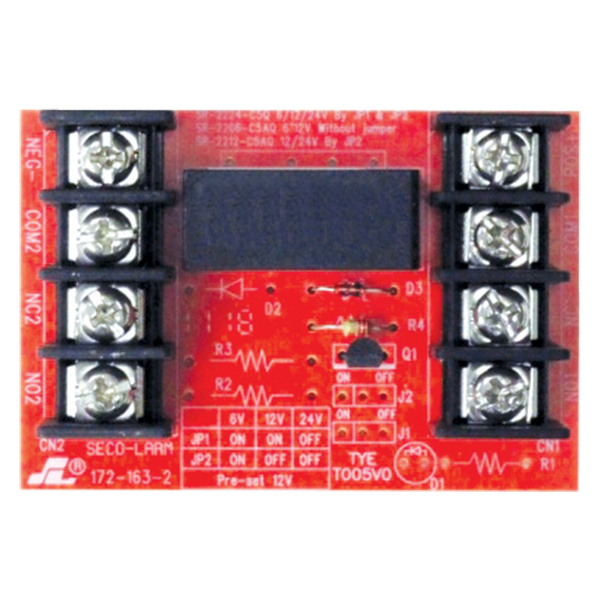

Seco-Larm SR-2206-C5AQ | Relay Module, 6/12VDC Trigger Voltage, One 5A Form C DPDT Relay
Regular price
$9.84
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm SR-2206-C5AQ | Relay Module, 6/12VDC Trigger Voltage, One...
Regular price
$9.84
Unit price
Brand: Seco-Larm Usa
|
SKU:
10118925
Regular price
$9.84
Unit price
Description
Description
Seco-Larm SR-2206-C5AQ | Relay Module, 6/12VDC Trigger Voltage, One 5A Form C DPDT Relay
Seco-Larm - SR-2206-C5AQ - Features
- 6/12VDC Trigger Voltage, One 5A Form C DPDT Relay
- Relay module for any application where relays are required
- Pre-mounted to easy-to-install modules
- Screw terminals allow easy installation without soldering or other time-consuming connections
- Wide-selection available: Choose single or dual relays, low-current or heavy-duty operation, and high-sensitivity or normal-sensitivity
Specifications
Specifications
Seco-Larm - SR-2206-C5AQ - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | SR-2206-C5AQ |
| Item Description | Relay Module, 6/12VDC Trigger Voltage, One 5A Form C DPDT Relay |
| Operating Voltage | 6/12 VDC |
| Trigger Voltage | 6/12 VDC |
| Voltage Selection | Auto-sensing |
| Relay Type | DPDT |
| Relay Ratings | 5A |
| No. of Relays | 1 |
| Current Draw | 70mA@6VDC, 80mA@12VDC |
| Dimensions | 2-3/4? x 1-7/8? x 3/4? (70 x 48 x 20 mm) |
| Weight | 2.0-oz (55g) |
| UNSPSC Code | 43211700 |
| Category | Access |
