Brand: Seco-Larm Usa | SKU: 10421362

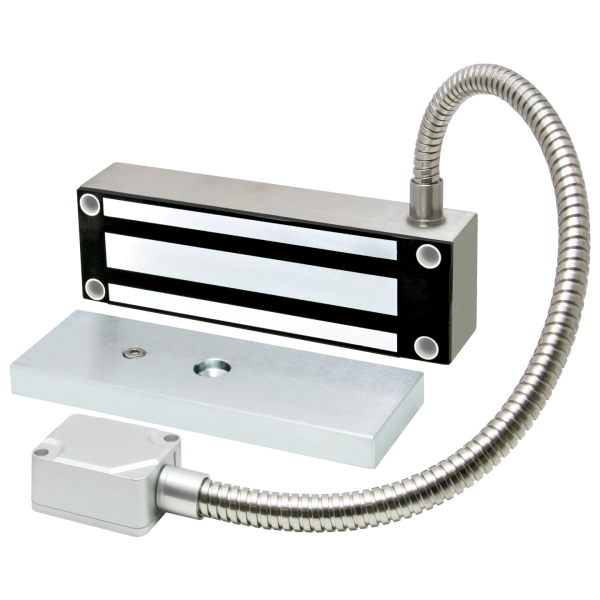

Seco-Larm Usa E-942FC-1K2AR | 1,200-Lb Electromagnetic Gate Lock With Door Cord

$259.39

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Seco-Larm Usa E-942FC-1K2AR | 1,200-Lb Electromagnetic Gate Lock With Door Cord

The SECO-LARM Electromagnetic Gate Lock with Door Cord combines a strong and durable gate lock with an armored door cord for ease of installation and greater security. 1,200-lb (544kg) holding force, it is suitable for almost any gate installation and can be installed horizontally as well as vertically.

Seco-Larm Usa - E-942FC-1K2AR - Features

12/24 VDC
For use with nearly all types of outdoor sliding and swinging electric gates
Low current draw of 500mA@12VDC, 250mA@24VDC
Can be mounted horizontally or vertically
18? (457mm) Armored door cord with housing and security screws (security wrench included)
IP65 Weatherproof
Limited Lifetime Warranty

Specifications

Seco-Larm Usa - E-942FC-1K2AR - Specifications

Brand Name	Seco-Larm Usa
Manufacturer Part Number	E-942FC-1K2AR
Item Description	1,200-Lb Electromagnetic Gate Lock With Door Cord
Operating voltage	12/24 VDC
Holding force	1,200-lb (544kg)
Current draw	500mA@12VDC, 250mA@24VDC
IP Rating	IP65
Connections	18? (457mm) Armored door cord with housing
Operating temperature	14°~131° F (-10°~55° C)
Dimensions	Maglock: 8?x2-1/2?x1-9/16? (203x63x40 mm) Armature Plate: 7-1/4?x2-3/8?x5/8? (185x61x16 mm)
Weight	10-lb 5.6-oz (4.7kg)

Documents and Downloads

Seco-Larm Usa E-942FC-1K2AR Specification Sheet
