Brand: Seco-Larm Usa
|
SKU:
10421363

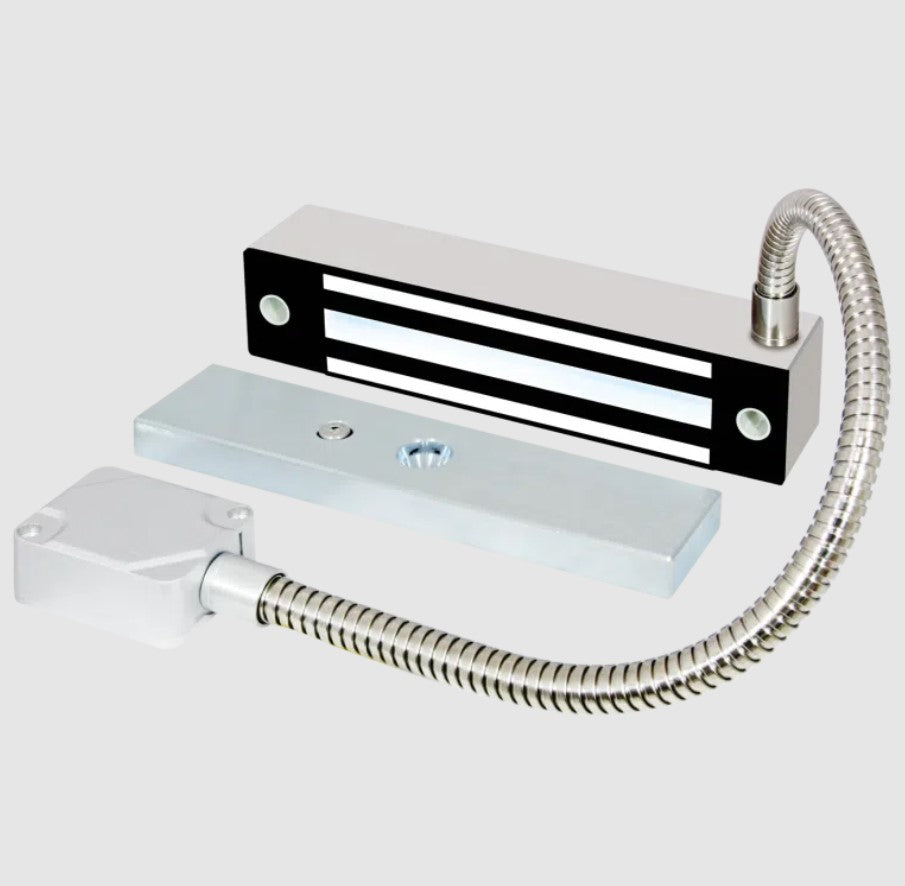

Seco-Larm Usa E-942FC-600AR | 600-lb Electromagnetic Gate Lock with Door Cord
Regular price
$240.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm Usa E-942FC-600AR | 600-lb Electromagnetic Gate Lock with...
Regular price
$240.31
Unit price
Brand: Seco-Larm Usa
|
SKU:
10421363
Regular price
$240.31
Unit price
Shipping calculated at checkout.
Description
Description
Seco-Larm Usa E-942FC-600AR | 600-lb Electromagnetic Gate Lock with Door Cord
The SECO-LARM Electromagnetic Gate Lock with Door Cord combines a strong and durable gate lock with an armored door cord for ease of installation and greater security. 600-lb (272kg) holding force, it is suitable for almost any gate installation and can be installed horizontally as well as vertically.
Seco-Larm - E-942FC-600AR - Features
- 12/24 VDC
- For use with nearly all types of outdoor sliding and swinging electric gates
- Low current draw of 500mA@12VDC, 250mA@24VDC
- Can be mounted horizontally or vertically
- 18? (457mm) Armored door cord with housing and security screws (security wrench included)
- IP65 Weatherproof
- Limited Lifetime Warranty
Specifications
Specifications
Seco-Larm - E-942FC-600AR - Specifications
| UNSPSC Code | 46171500 |
|---|---|
| Operating voltage | 12/24 VDC |
| Holding force | 600-lb (272kg) |
| Current draw | 500mA@12VDC, 250mA@24VDC |
| IP Rating | IP65 |
| Connections | 18" (457mm) Armored door cord with housing |
| Operating temperature | 14°~131° F (-10°~55° C) |
| Dimensions | Maglock: 8"x1-11/16"x1-9/16" (203x43x40 mm) Armature Plate: 7-1/4"x1-5/8"x9/16" (185x41x14 mm) |
| Weight | 6-lb 2-oz (2.76kg) |
