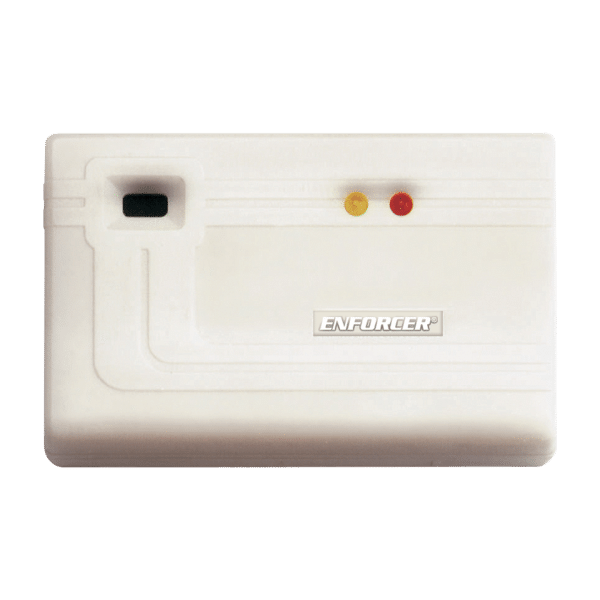

Seco-Larm Usa ENFORCER 190 | Glass Break / Audio Discriminator
Description
Description
The ENFORCER 190 is the most convenient audio glass break detector for glass break protection on the market today. Designed with the latest technology, it is the installer’s answer to the problem of sensitivity setting and false alarms. A single convenient ENFORCER 190 is enough to protect all the windows and doors within a 15ft radius when mounted on the ceiling, eliminating the need to install unsightly individual detectors on each pane of glass. Sensitivity setting is extremely simple with SECO-LARM’s yellow turbulence LED (patented) which eliminates the need for external test meters. The relay output is programmed for a 2-second reset.
Seco-Larm Usa - ENFORCER 190 - Features
- Yellow turbulence led (patented) allows fast and easy sensitivity adjustment without external test meter
- Yellow LED gives pinpoint sensitivity adjustment to eliminate false alarms
- Detects the high-frequency sound of glass breaking
- Wide 25ft radius protection area if ceiling-mounted, 45ft if wall-mounted
- Red trigger LED
- Tamper proof case
- Installs without RF-shielded cable
- Compact size and attractive appearance allow installation anywhere
Specifications
Specifications
Seco-Larm Usa - ENFORCER 190 - Specifications
| Brand Name | Seco-Larm Usa |
|---|---|
| Manufacturer Part Number | ENFORCER 190 |
| Item Description | Glass Break / Audio Discriminator |
| Operating Voltage | 12VDC (7.5~15 VDC) |
| Current Draw | Standby: 5mA@12VDC Triggered: 80mA@12VDC |
| Outputs | Detection: Dry relay NO/NC/COM (3A@24VDC, 3A@125VAC) Tamper: N.C. Contact |
| LED Indicators | Yellow: Environmental noise level Red: Trigger signal sent to alarm |
| Protection radius | 25ft if ceiling-mounted 45ft if wall mounted |
| Housing Material | ABS Plastic |
| Operating Temperature | -14º ~122º F (-10º~50º C) |
| Dimensions | 4-1/2? x 2-3/4? x 1-1/16? (115 x 70 x 27 mm) |
| Weight | 3.35-oz (95g) |
