Brand: Seco-Larm Usa
|
SKU:
10715692

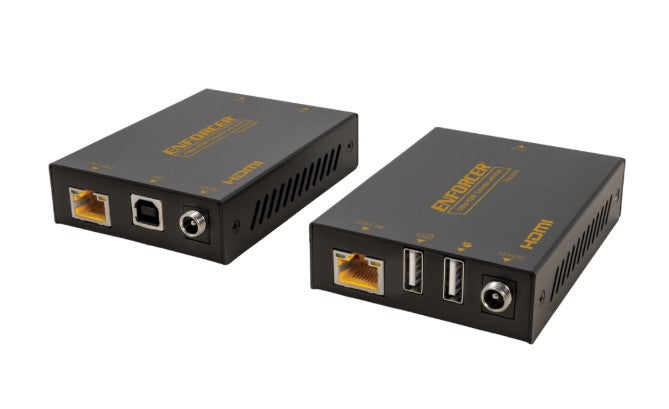

Seco-Larm USA MVE-AH1E1-03U | HDMI Extender with KVM 1080p
Regular price
$121.77
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm USA MVE-AH1E1-03U | HDMI Extender with KVM 1080p
Regular price
$121.77
Unit price
Brand: Seco-Larm Usa
|
SKU:
10715692
Regular price
$121.77
Unit price
Shipping calculated at checkout.
Description
Description
Seco-Larm USA MVE-AH1E1-03U | HDMI Extender with KVM 1080p
The ENFORCER HDMI® Extenders with KVM and PoC allow you to transmit HDMI audio and video as well as a USB signal up to 328ft (100m) over a single Cat6/6A cable using an active transmitter and receiver, allowing remote operation of a device such as a computer or NVR/DVR. The extenders also provide HDMI loop-out and KVM.
Seco-Larm USA - MVE-AH1E1-03U - Features
- Display up to 1080p@60Hz
- Zero-latency transmission over a single Cat6/6A
- Supports USB keyboard and mouse (KVM)
- Supports point-to-point connections
- Transmitter includes HDMI loop-out
- Lightning Protection, surge protection, and ESD protection
- Supports Power over Cable (PoC) for simplified installation—requires only one power supply on either the transmitter or receiver side
Specifications
Specifications
Seco-Larm USA - MVE-AH1E1-03U - Specifications
| Video Bandwidth | 4.95Gbps |
|---|---|
| Video Resolution | Up to 1080p@60Hz, 1920×1200@60Hz |
| HDR | Not supported |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color | 8 bit |
| Audio Formats | LPCM 2.0CH |
| Transmission Range (Cat6/6A) | 328ft (100m) |
| Cat6/6A Wiring Standard | T-568B |
| Power Supply | 12VDC@1A |
| Current Draw | <12W |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Operating Humidity | 20~90% (relative humidity, non-condensing) |
| Storage Humidity | 10~90% (relative humidity, non-condensing) |
| Operating Temperature | 32°~104°F (0°~40°C) |
| Storage Temperature | -4°~140°F (-20°~60°C) |
| Dimensions | 3-9/16" x 2-11/16" x 7/8" (90 x 68 x 22 mm) |
