Seco-Larm Usa MVE-AH1H1-42YQ | Enhanced 4K HDMI over single Cat5e/6
Description
Description

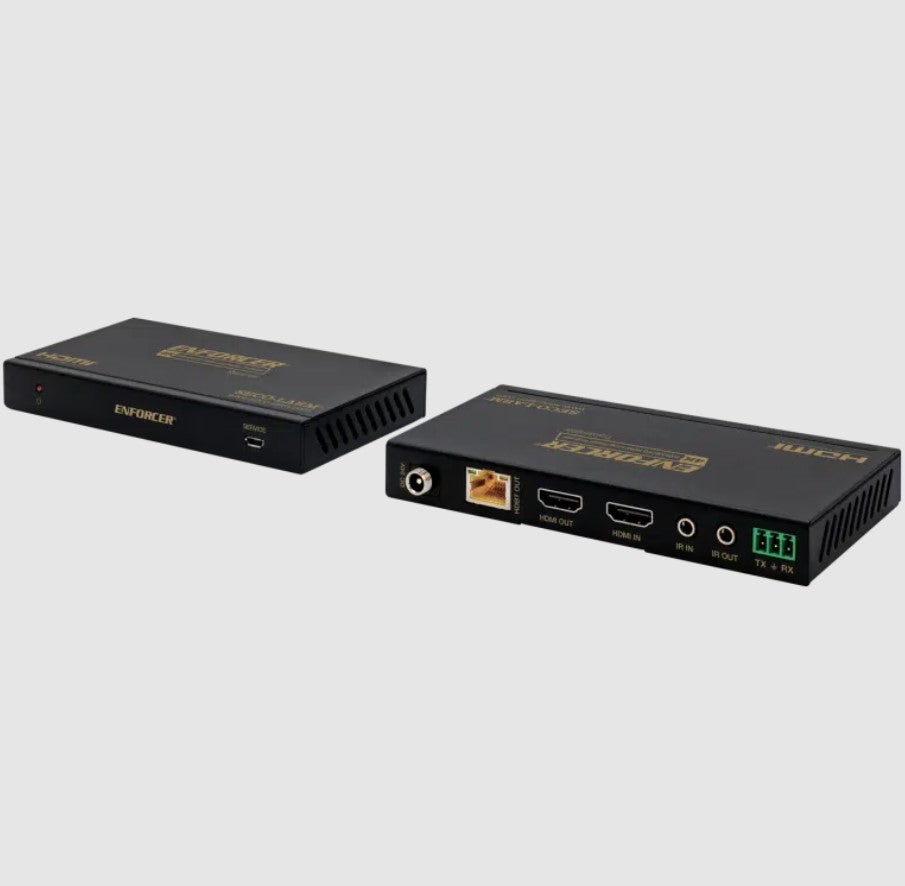

The ENFORCER 4K ENHANCED HDMI Long Range Extender extends the range of HDMI signals by using an active transmitter and receiver to send video and audio, RS-232, and bi-directional IR over a single Cat5e/6 cable. It can send 1080p signals up to 492ft (150m) between the two units with zero signal loss, while 4K2K/UHD HDMI signals can be transmitted up to 394ft (120m). A single power supply can power both devices from either end of the installation.
Seco-Larm - MVE-AH1H1-42YQ - Features
- Extends 1080p up to 492ft (150m) and 4K2K up to 394ft (120m)
- Supports resolutions from 480i to 4K2K/UHD
- Supports 18Gbps video bandwidth
- Plug and play operation – comes as a complete set
- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Transmitter includes an HDMI loop output
- Analog stereo output on receiver
- Bi-directional IR, RS-232, and CEC pass-through
- Supports HDF, HDR10+, Dolby Vision, and HLG
- Includes one 24VDC power supply – set can be powered at either the transmitter or receiver
Specifications
Specifications
Seco-Larm - MVE-AH1H1-42YQ - Specifications
| UNSPSC Code | 43211700 |
|---|---|
| Input video signal | 3.3V |
| Input DDC signal | 5Vp-p (TTL) |
| Maximum single link range | 4K2K@60Hz |
| Deep color | 48-bit |
| Video formats supported | All HDMI 3D, HDCP 2.2 |
| Audio formats supported | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| L/R Audio formats | PCM 2.0 |
| Output video | HDMI |
