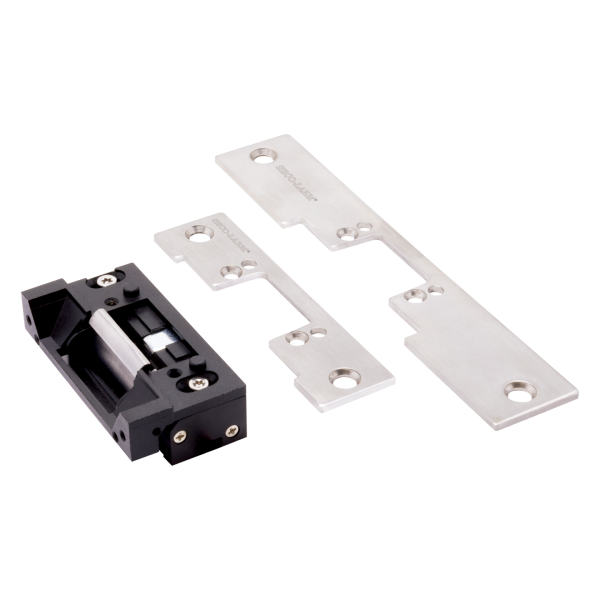

Seco-Larm Usa SD-996C-NUHQ | Low-Profile Electric Door Strike With Horizontal Adjustment
The SECO-LARM SD-996C-NUHQ Low-Profile Door Strike with Horizontal Adjustment can be used with virtually any cylindrical-locking system and can be configured for use in wood or metal frames. Included are two different ANSI-sized faceplates to match the door frame type. The strike is easily field-configurable for fail-safe or fail-secure applications. For indoor use only.
Seco-Larm Usa - SD-996C-NUHQ - Features
- Field selectable for fail-safe or fail-secure
- 12/24 VAC/VDC Operating voltage
- Static strength – 1,500-lb (6,673N)
- Dynamic strength – 70ft-lb (98J)
- Includes wiring harness and connectors for either 12VAC/VDC or 24VAC/VDC
- Trim plate included
- Mounting tabs included for mounting to hollow aluminum door
- Reversible non-handed design fits either right-hand or left-hand doors
- Low profile: Strike is only 1? (26mm) deep for use with aluminum frames
Specifications
Specifications
Seco-Larm Usa - SD-996C-NUHQ - Specifications
| Brand Name | Seco-Larm Usa |
|---|---|
| Manufacturer Part Number | SD-996C-NUHQ |
| Item Description | Low-Profile Electric Door Strike With Horizontal Adjustment |
| Operating voltage | 12/24 VAC/VDC* |
| Current draw | 12VDC, 12VAC, 24VDC, 24VAC* |
| Latch throw | 9/16? (15mm), 1/2? (12mm) strike depth + 1/8? (3mm) door gap |
| Static strength | 1,500-lb (6,673N) |
| Dynamic strength | 70ft-lb (95J) |
| Endurance | 1,000,000 cycles (factory tested) |
| Operating humidity | 0~85%, Non-condensing |
| Operating temperature | 32°~120° F (0°~49° C) |
| Dimensions | 3-3/8?x1-3/4?x1? (86x45x26 mm) |
| Weight | 11.2-oz (318g) |
