Brand: Seco-Larm Usa
|
SKU:
10633253

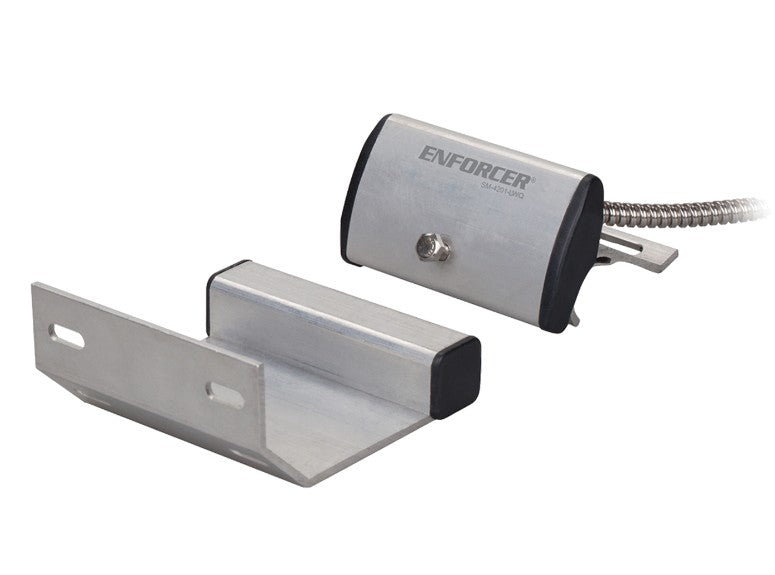

Seco-Larm Usa SM-4201-LWQ | Wide Track-Mount Overhead-Door Magnetic Contact
Regular price
$28.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm Usa SM-4201-LWQ | Wide Track-Mount Overhead-Door Magnetic...
Regular price
$28.72
Unit price
Brand: Seco-Larm Usa
|
SKU:
10633253
Regular price
$28.72
Unit price
Shipping calculated at checkout.
Description
Description
Seco-Larm Usa SM-4201-LWQ | Wide Track-Mount Overhead-Door Magnetic Contact
Seco-Larm Usa - SM-4201-LWQ - Features
- Adjustable for door-channel widths 2-5/8?~4? (66~101 mm)
- 3? (76mm) Gap for overhead doors in both industrial and residential situations, where a wide gap is present
- Rugged aluminum housing, IP65 weatherproof
- 36? (91cm) Wire leads enclosed in armored cable
- Contact type: iridium-plated to have a high melting point and Vickers hardness for higher power handling and longer expected life
- SPST closed-loop circuits
- Mounting bracket included
Specifications
Specifications
Seco-Larm Usa - SM-4201-LWQ - Specifications
| Loop Type | Closed |
|---|---|
| Electrical configuration | N.O. (SPST) |
| Wires | 2 |
| Operation gap | 3? (76mm) |
| Connectors | 36? (91cm) Armored leads |
| Contact rating | 1.0A@10VDC (max.), 10W (max.) |
| IP Rating | IP65 Weatherproof |
| Operating temperature | -15°~160° F (-25°~70° C) |
| Door channel width | 2-5/8~4? (66~101 mm) |
| UNSPSC Code | 46171500 |
