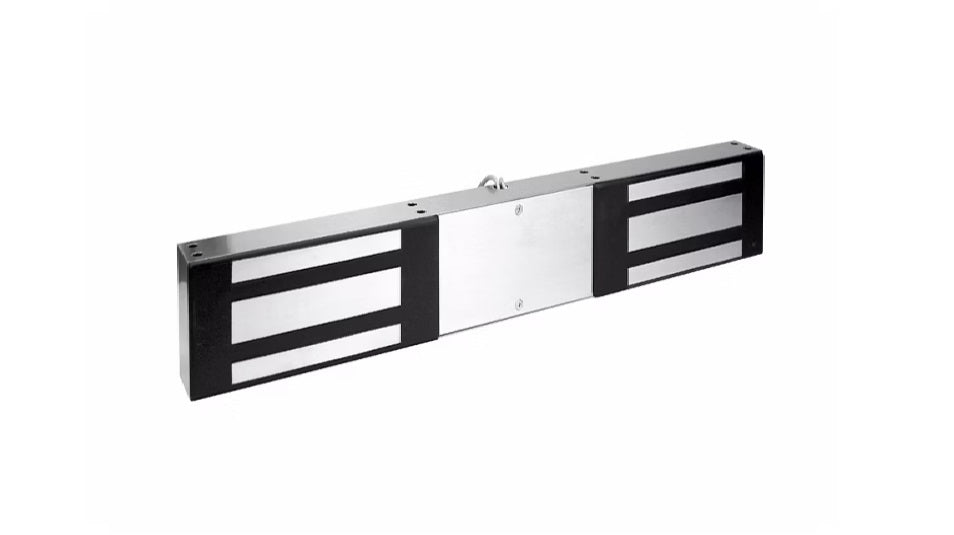

Securitron Magnalock DM62OS | DM62 Magnalock
The versatile Securitron DM62 electromagnetic lock offers strength and ease of maintenance for interior, perimeter and exterior access control—in a compact double magnet. This all-in-one unit is designed for double doors with no mullion. With unsurpassed durability, the Securitron DM62 will last long after most buildings wear out.
Securitron Magnalock - DM62OS - Features
- Patented instant release circuit - no residual magnetism
- Both locks can be controlled as one or individually
- Surface mounts easily with minimal tools
- Fully sealed electronics - tamper and weather resistant
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- 36" of jacketed, stranded conductor cable for each lock
- Automatic dual voltage - no field adjustment required
- Lock options include BondSTAT magnetic bond sensor and integrated door position switch
Specifications
Specifications
Securitron Magnalock - DM62OS - Specifications
| Maximum Operating Temperature (°F) | 140 |
|---|---|
| Minimum Operating Temperature (°F) | -140 |
| Current 12v DC (mA) | 250 |
| Current 24v DC (mA) | 150 |
| Voltage | 12/24 |
| Holding Force (lbs) | 1200 |
| Grade | 2 |

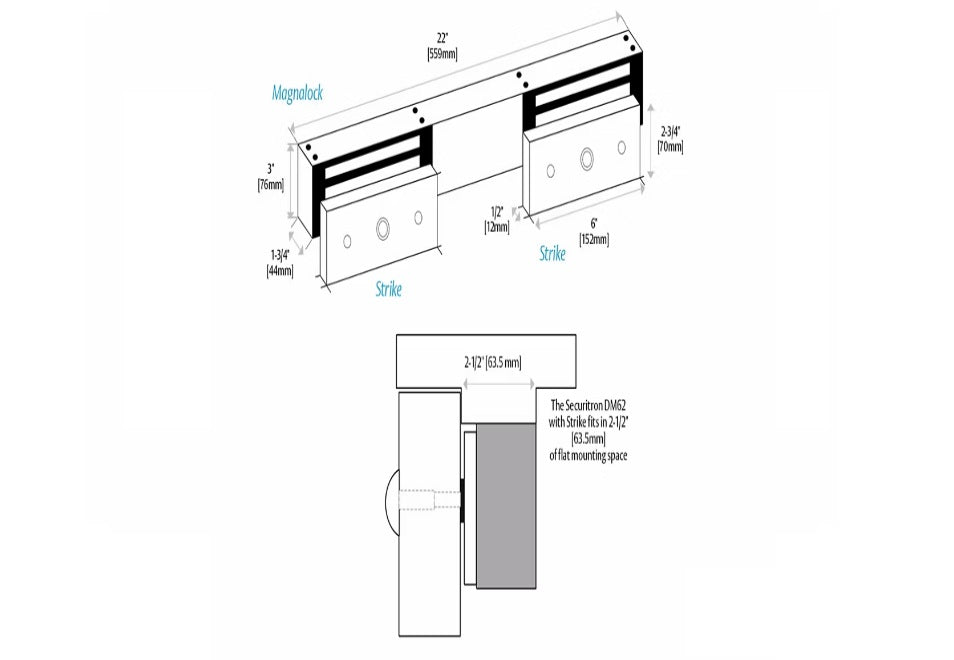

| Magnet Depth (in) | 2-3/4" |
| Magnet Height (in) | 3" |
| Magnet Length (in) | 22" |
