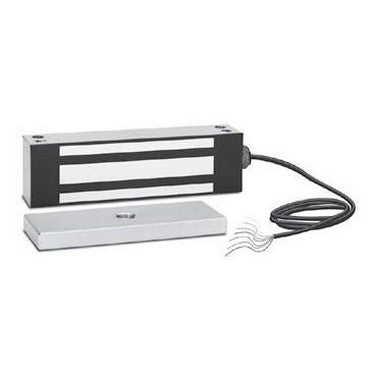

Security Door Controls 1575U Standard Mounting Electromagnetic Gate Lock

SDC 1575U Standard mounting with magnetic bond sensor Gate EMLock® provides 1200lbs of holding force and enables the access and egress control of pedestrian and vehicle gates. Gate EMLocks are compatible with manual and automatic, swinging and sliding, tubular and iron gates. The floating armature design compensates for gate misalignment with the electromagnet.

Features

Stainless Steel Case

Epoxy filled for weather resistance

Threaded conduit fitting

Built-in voltage kickback protection

Low power consumption

Built-in bond sensor (BAS)

Conduit Fitting: 1/2'' Length, 3/4'' outside thread, 1/2'' inside thread

Specs

Manufacturer Security Door Controls

Condition New

Housing Dimensions 8-21/32''L x 2-1/2''H x 1-39/64''T

Armature Plate Dimensions 7-9/32''L x 2-13/32''H x 5/8''T

Door Type Swing Gate or Slide Gate

Voltage Field Selectable 12/24 VDC

Power/Current Requirements 450mA @ 12VDC, 225mA @ 24VDC

Holding Force 1200 lbs. (540kg)

Mounting Type Surface

U.L. Listed UL Listed
