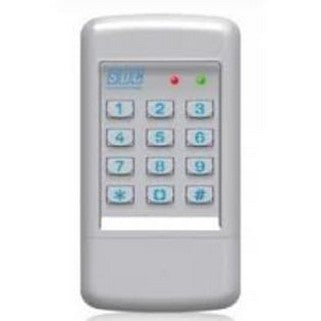

Security Door Controls 920 Digital Keypad

The SDC 920 EntryCheckTM is a stand alone digital keypad designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock.

Features

500 Users, 1-6 digit PIN codes

4 outputs, 2 relay and 2 solid state outputs timed or latching (on/off)

Assign entry PIN’s to relays 1 and/or 2

LED Status: Access, lockout

Tactile keys with selectable audible volume for key depression or output activation

Timed anti-passback

Keypad tamper lockout

Request-to-Exit/Enter input

Specs

Manufacturer Security Door Controls

Category New

Voltage : 12/24 VAC/DC

Current : 30mA typical, 150mA maximum

Temperature : -20°F to + 130°F (-30°C to + 54°C)

Humidity : 5% to 95% non-condensing

Dimensions : 3”W x 5-3/4”H x 1-7/16”D
