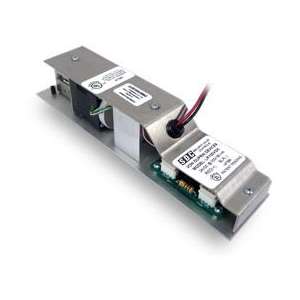

Security Door Controls LR100DAK Dorma, Elr Kit

The SDC LR100 Series Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad on most devices into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door.

Features:

• 700 mA Inrush, 200 mA Continuous @ 24VDC
• For access control and sustained dogging applications
• Simultaneous latch retraction and dogging (pushpad depressed) for most exit devices
• Pushpad is depressed electrically for quieter push / pull operation
• Automatic re-trigger if device does not pull on first try
