Description
Description

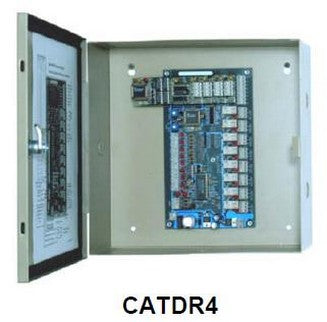

Access Control - SES CATDR4 CAT Expansion Modules.
FeaturesThe CATDR4 works with any CAT and provides four wiegand inputs for card readers, keypads or long range proximity Includes all of the necessary relays to control up to four entrances
Each CATDR4 is controlled by the CAT and is connected via RS485
Three CATDR4 may be added to any CAT and the last expansion module can be 4,000 feet away
Each CATDR4 is “opto isolated” from all other expansion modules and the CAT providing additional surge suppression and isolation of any surge damage
CATDR4 and CATRLY8 may both be added to any CAT
CATDR4 is a four reader expansion module that will interface with any CAT
CATDR4 is supplied with a 18 VAC 40VA transformer
Up to 3 CATDR4 expansion modules may be added to any CAT
The CATDR4 is opto Isolated (electrically isolated) from any other expansion module(s) and the CAT
The CATDR4 provides 4 wiegand reader / keypad inputs
The CATDR4 provides door sense input, REX (request to exit) input, door shunt output and door release output for each of the 4 entrances. (relay output is 24V AC/DC @ 3 amps)
The CATDR4 (maximum 3) may be used with the CATRLY8 (maximum 32) on any CAT expansion
The CATDR4 is programmed via the CAT using Selcom software
Specs Manufacturer Select Engineered Systems Inc.
Condition New
Dimensions: 11'” W x 11” H x 3 1/2” D
Material Used: 16 gauge steel, weather resistant enclosure available, order part #OPTRSTWRH
Finish: Painted
Power Input: 18 VAC, 40 VA UL listed transformer (provided with unit)
Emergency Battery: Optional 12V .7 AHR GEL CELL on constant charge (for control of line voltage variation)
Mounting: Surface, flush or pedestal mount
Shipping Weight: Approx. 15 lbs
Operating Environment: Temp.: -20º to 40º C; (CATV temp.: 0º to 40º C) Relative humidity: 5% to 95% non-condensing
Relay Output: Form C dry contact 24V @ 3AMP
