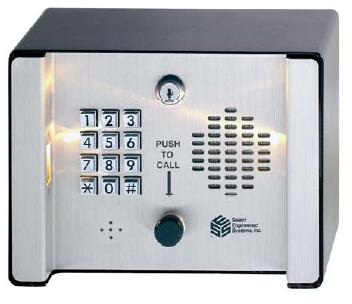

Select Engineered Systems SG2 | Telephone Entry Control
SG2C Series incorporates the latest technology to address both residential and commercial applications. With both PIN access and optional Card or Select Pass transmitter capability, the SG2C is more flexible than ever before. SG2C provides 9 Time Zones for access control and “Do Not Disturb” that provides the owner even more control. The SG2C provides “dated and timed” cards and PIN’s for visitors, deliveries and contractors.
Select Engineered Systems - SG2 - Features
- DSL filtering built-in. SG2C transparent to existing or new DSL lines.
- 100 PIN Codes, each programmable by Time Zone and function as well as making them valid by date or permanent.
- 9 Programmable Time Zones.
- 26 Bit Wiegand input, for Card Reader, Receiver and Slave Keypad.
- 100 Cards or Transmitters, for access without using the keypad each programmable by time zone as well as making them valid by date or permanent.
- Large Event Log Buffer (approx. 800).
- Calls 10 additional numbers.
- Call Forward by Time Zone.
- Works on the existing phone line.
- Long life white LED lighting.
- Low power consumption for solar powered applications.
- Transparent to existing or new DSL service.
Specifications
Specifications
Select Engineered Systems - SG2 - Specifications
| Mounting dimensions | 7” H x 9 7/16” W x 4 9/16” D |
|---|---|
| Construction | .090 aluminum, primed and painted black texture for exterior use. Front door brushed stainless steel. |
| Power Input | 16 VAC 20 VA plug-in transformer supplied or 12VDC @ 120ma (nominal) |
| Telephone Interconnect | RJ31X jack supplied |
| Operating Environment | Temperature –20 F to +140 F, Relative Humidity 5% to 95% non-condensing. |
| Relay Output (2) | Form C dry contact, 24 V @ 3 AMPS. |
| Mounting | Surface, Recessed or Pedestal |
| Tone Detection | Crystal controlled capable of detecting short burst 50 MS. DTMF tone, (detects touch-tones only) |
