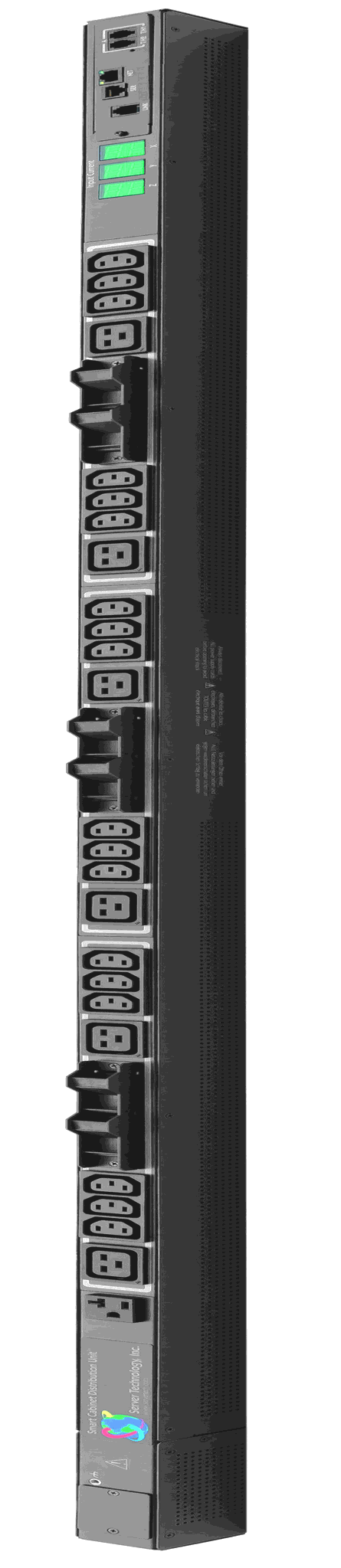

Servertech CS-24VD-L30MA | Smart PDU
Regular price
$1,227.26
Unit price
Brand: Servertech
|
SKU:
426875
Regular price
$1,227.26
Unit price
Description
Description
Servertech CS-24VD-L30MA | Smart PDU
The Smart Cabinet PDU delivers reliable power distribution, local power monitoring via LEDs, power monitoring via IP and environmental (temperature & humidity) monitoring via IP. Increasing power demands and density in the equipment cabinet requires new functionality from your cabinet PDU. The Sentry Cabinet PDU product family uniquely meets these demands. The Sentry Cabinet Power Distribution Unit (CDU) is an intelligent PDU with local LED input current monitoring, allowing network engineers to utilize the Cabinet PDUs True RMS Power Monitor to precisely measure the current (in amps) that network devices are drawing on the power circuit. As new equipment units are added to the power drop, immediately observe its impact on the cumulative current draw. This allows the engineer to safely load each circuit to its maximum allowable load capacity without the danger of overloading the power circuit. The Cabinet PDU meets new UL 60950-1 Branch Circuit Protection requirements. Each branch circuit utilizes a Bussman SC fuse as an Overcurrent Protection Device (OCPD). Now you can safely run 30-amp power drops to your server cabinet where individual outlet receptacles have lower output ratings (i.e., 20-amps). Designated Smart Products are linkable.
The Smart Cabinet PDU delivers reliable power distribution, local power monitoring via LEDs, power monitoring via IP and environmental (temperature & humidity) monitoring via IP. Increasing power demands and density in the equipment cabinet requires new functionality from your cabinet PDU. The Sentry Cabinet PDU product family uniquely meets these demands. The Sentry Cabinet Power Distribution Unit (CDU) is an intelligent PDU with local LED input current monitoring, allowing network engineers to utilize the Cabinet PDUs True RMS Power Monitor to precisely measure the current (in amps) that network devices are drawing on the power circuit. As new equipment units are added to the power drop, immediately observe its impact on the cumulative current draw. This allows the engineer to safely load each circuit to its maximum allowable load capacity without the danger of overloading the power circuit. The Cabinet PDU meets new UL 60950-1 Branch Circuit Protection requirements. Each branch circuit utilizes a Bussman SC fuse as an Overcurrent Protection Device (OCPD). Now you can safely run 30-amp power drops to your server cabinet where individual outlet receptacles have lower output ratings (i.e., 20-amps). Designated Smart Products are linkable.
Servertech - CS-24VD-L30MA - Features
- Communications: 10/100 BaseT Ethernet; HTTP/HTTPS; SSLv3/TLSv1; SNMPv2; SSHv2; Telnet; LDAPv3/LDAPS; TACACS+; RADIUS; RS-232 (Serial)
- Branch Circuit Protection: Compliant to UL 60950-1
- Accessories: Temperature & Humidity Probe - EMTH-1-1 Temperature & Humidity Probe, 10 ft (3 m)
- Remote Power Monitoring - Monitor input power via IP or serial interface.
- HTTP/HTTPs Web Configuration & Control - Use the Sentry Web interface to configure each unit’s network settings. SNMP traps for environmental & power thresholds and firmware updates. Also use the Web interface to monitor key values, including amperage load(s), temperature/humidity and other environmental conditions. SSL security provides a secure HTTPs connection.
- SNMP Management & Event Notification - The Sentry family of products supports the Simple Network Management Protocol (SNMP). This allows network management systems to use SNMP requests to retrieve information such as input power, temperature and humidity. The Sentry includes an SNMP v1 agent supporting standard MIB I and MIB II objects. A private enterprise MIB extension (Sentry3 MIB) is also supported to provide remote power control. SNMP traps can be generated for various events, including Input Current Load Thresholds (min & max), Temperature Thresholds (min & max), Humidity Thresholds (min & max), water indication, and closed contacts (cabinet doors open/close).
- Add a Second Tower - Connect an Expansion Cabinet PDU to this Smart Cabinet PDU to control two power input circuits and monitor power in the Data Center cabinet (individual or groups) under 1 IP address - our exclusive strategy for managing dual power-supply servers.
- Zero U Enclosure - A vertical enclosure that occupies Zero Vertical U of rack space in the equipment cabinet. It mounts on the back rails or in the cavity space of the cabinet.
- Secure Access - SSH or SSL Protection - Secure Shell (SSH), known as Secure Socket Shell, is a Unix-based command interface and protocol for securely getting access to a remote device. Sentry supports SSHv2. Secure Sockets Layer (SSL) is a commonly-used protocol for managing the security of a message transmission on the Internet. SSL is an integral part of most Web browsers (clients) and Web servers. Sentry supports SSLv3/TLSv1.
- Integrated Temp/Humidity Probe Support - Two (2) RJ-style connectors located on the face panel of the PDUs enclosure provide support for two (2) Integrated Temperature & Humidity Probes with ten-foot (10’) cables provide real-time measurements in the data c
- (18) C13 & (6) C19 outlets
- Network Monitoring
- Linkable Expansion
- Temperature/Humidity Monitoring
- Auto-Flip Current Display
- Branch Circut Protection
- High Retension Locking Outlets
- Flexible Mounting
- Color Identification
- Cisco Energywise Compliant
Specifications
Specifications
Servertech - CS-24VD-L30MA - Specification Description
- Outlets: (18) IEC 60320/C13(6) IEC 60320/C19
- Available InputVoltages: 3-Phase Delta, 208V50/60 Hz
- Rated Amperage: 30A
- Available Input Cord: NEMA L15-30PCord Set, 10 ft (3m)
- Dimensions(L x W x D): 69"x1.75"x2.25"(1752x44.4x57mm)
Servertech - CS-24VD-L30MA - Technical Information
- cTUVus UL 60950-1-2003
- CAN/CSA 22.2 No. 60950-1:2003
- TUVGS EN 60950-1:2001
- FCC Class A, Part 15
- CE
- EMC-EN 55022 Class A, EN 55024
Servertech - CS-24VD-L30MA - Specifications
| Number of Outlets | 24 |
|---|---|
| Type | RACK MOUNT PDU |
| UNSPSC Code | 39121017 |
| Input Power Capacity (kW) | 8.6 |
| Input Plug Type | NEMA L15-30P |
| Input Current (A) | 30 |
| Input Current Rated (A) | 24 |
| Input Nominal Voltage (V) | 208 |
| Input Phase: | 3-Phase Delta (L-L) |
| Input Cord Location: | Bottom/Front |
| Outlet Form Factor: | Conventional |
| Total Outlets: | 24 |
| IEC C13 Count: | 18 |
| IEC C19 Count: | 6 |
| Branch Monitoring: | None |
| Branch Overcurrent Protection: | 100 kA |
| Branch Overcurrent Protection Type: | Fuse Retractor |
| Dual Input: | No |
| High Retention Outlets: | Yes |
| Input Current Display: | Auto-Orient |
| Input Monitoring: | Current (A) |
| Locking Outlets: | Yes |
| Max Operating Temperature: | 50 °C |
| Fast Movers: | No |
| Mounting: | 0U Vertical |
| Outlet Monitoring: | None |
| PDU Platform: | CDU 1 |
