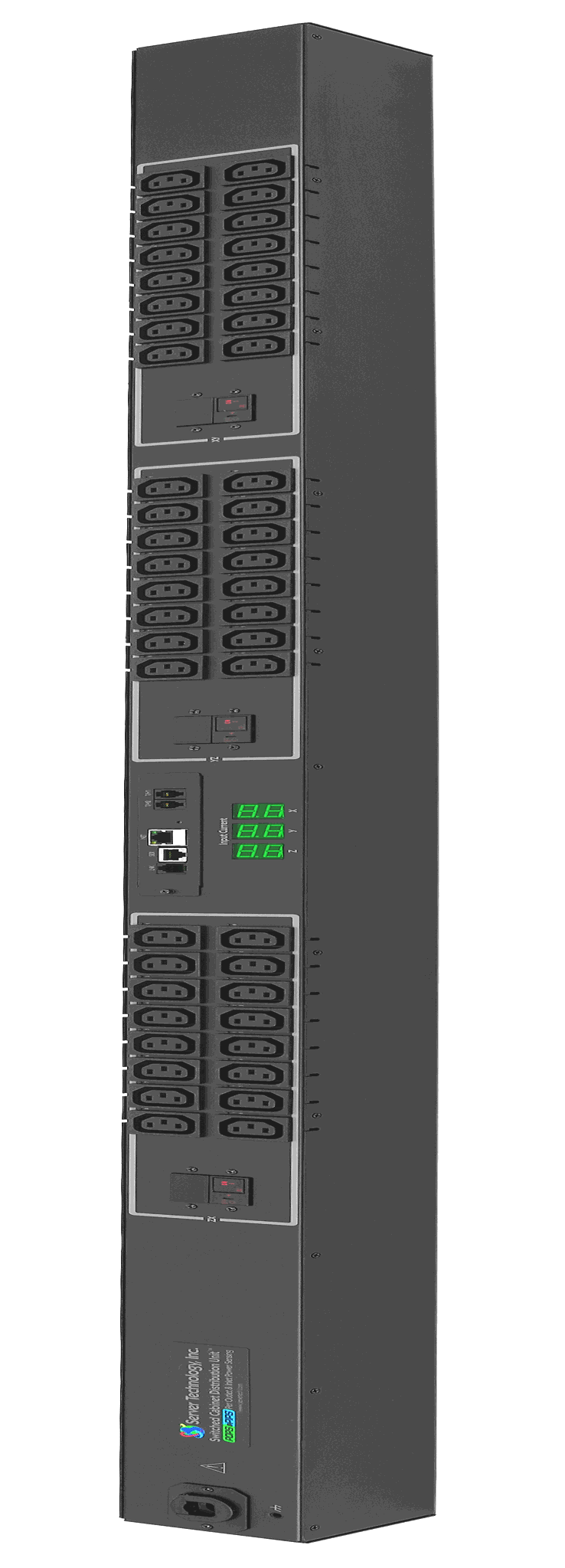

Servertech CWG-48VDD425 | Sentry Switched Pops CDU With Pips, Outlets: (48) Iec 60320/C13, Input: 240 Volt, 3-Phase Delta

Servertech - CWG-48VDD425 - Features

• High-density- Single-power input feed, 48 x IEC C13 outlets per enclosure
• Power distribution- 208 Volt, 3-Phase Delta/Wye 20 and 30 Amp power infeed options
• Input Current Monitor- Precisely measure the aggregate current draw (in amps) of the circuit. On-site verification of the input current with LED digital display. Remote verification via web browser or serial screen
• Network power management- Power cycle individual power outlets or groups of power outlets, to remotely reboot servers and network devices, anywhere in the world or, power-off unused power receptacles
• IP access and security- Web interface, SSL, SSH, Telnet, SNMP, FTP, SNTP, Syslog, LDAP, LDAPS, RADIUS, TACACS and RS-232 access
• SNMP traps and email alerts- Provide automated alerts for power and environmental conditions
• Environmental monitoring - Each switched CDU supports two external temperature and humidity probes and reports conditions thru the user interface without the need for additional IP addresses
• Add an expansion module - Connect the expansion CDU (CXG) to a master unit (CWG) for power monitoring and management of separate power circuits from a single IP address
• Per outlet power sensing- Power monitoring and information per individual outlet/device. Information includes: Current load (A), voltage (V), power (kW), apparent power (VA), Crest Factor and Power Factor per outlet. Using our grouping technology, using clustering power information is available per device, groups of devices (application), individual CDU or cabinet. kW and kW-hour power information that can be utilized for billing, power monitoring, trending and power reports
• Network Access and Per Outlet Control- Individual or group outlet network access power control to cycle power and reboot any selected server(s) or other network device(s). Use TCP/IP (HTTP, HTTPS, SSH, Telnet, SNMP) or RS-232 to communicate with each sentry Cabinet PDU and rectify locked-up network devices. Reduce Mean Time to Repair (MTTR) a failing server by controlling individual power outlet receptacles to reboot any selected server or other device. POPS units can also be controlled on an per outlet basis. Assign outlets to a group for control of dualpower supply servers and other gear with a single command. Create an unlimited number of groups with any combination of outlets associated to each group
• Establish efficiency ratings - PUE and DCIE - Power information generated can be used to calculate PUE and DCIE, these power ratings have been established by the Green Grid
• (48) C13 outlets
• Network Monitoring
• Linkable Expansion
• Temperature/Humidity Monitoring
• Auto-Flip Current Display
• Per-Inlet Power Sensing
• Per-Outlet Power Sensing
• Branch Circut Protection
• Outlet Control
• High Retention Locking Outlets
• Flexible Mounting
• Color Identification
• Cisco Energywise Compliant
