Brand: Servertech
|
SKU:
947931

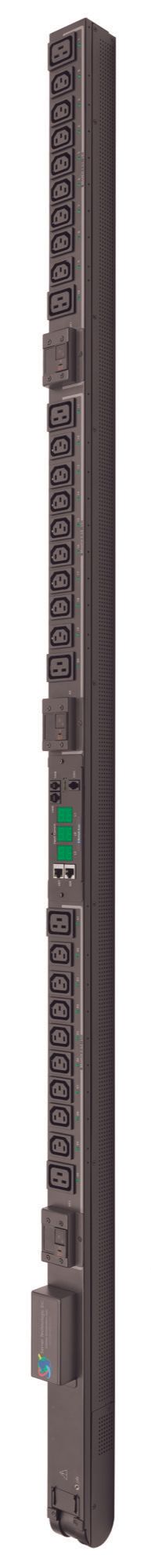

Servertech STV-4502M | Switched Pips Pro2 (24) Iec C1 Ed Amp Meter 208V, 30A with L21-30P
Regular price
$3,371.96
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Servertech STV-4502M | Switched Pips Pro2 (24) Iec C1 Ed Amp Meter ...
Regular price
$3,371.96
Unit price
Description
Description
Servertech STV-4502M | Switched Pips Pro2 (24) Iec C1 Ed Amp Meter 208V, 30A with L21-30P
The Server Technology PRO2 Switched Rack PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched "Master" PDU can be connected to as many as three PRO2 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
The Server Technology PRO2 Switched Rack PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched "Master" PDU can be connected to as many as three PRO2 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
Servertech - STV-4502M - Features
- (24) C13 & (6) C19 outlets
- Network Monitoring
- Hot-Swap Network Card
- Star Multi-Linking
- Temperature/Humidity Monitoring
- Auto-Flip Current Display
- Per-Inlet Power Sensing
- Branch Current Monitoring
- Branch Circut Protection
- Outlet Control
- High Retention Locking Outlets
- Power Pivot
- Flexible Mounting
- Color Identification
- Cisco Energywise Compliant
- Network Monitoring
- The PRO2 hot-swappable network card provides for HTTP(S), SSH, Telnet,SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
- Hot-Swap Network Card
- Network access is ensured when power is lost to the Master unit with backup power provided by the primary link unit.
- Star Multi-Linking
- PRO2 provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
- Temperature/Humidity Monitoring
- Master and Link (select products) units each support two external 10ft (3m) T/H probes. Receive SNMP-based alerts and email notifications.
- Auto-Flip Current Display
- Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
- Per-Inlet Power Sensing
- Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
Specifications
Specifications
Servertech - STV-4502M - Specifications
| Number of Outlets | 24 |
|---|---|
| Type | STAND ALONE PDU |
| UNSPSC Code | 39121017 |
| Input Power Capacity (kW): | 8.6 |
| Input Plug Type: | NEMA L21-30P |
| Input Current (A): | 30 |
| Input Current Rated (A): | 24 |
| Input Nominal Voltage (V): | 208 |
| Input Phase: | 3-Phase Wye (L-L) |
| Input Cord Location: | Bottom/Pivot |
| Outlet Form Factor: | Conventional |
| Total Outlets: | 30 |
| IEC C13 Count: | 24 |
| IEC C19 Count: | 6 |
| Branch Monitoring: | Current (A) |
| Branch Overcurrent Protection: | 5 kAIC |
| Branch Overcurrent Protection Type: | Circuit Breaker: 2-pole |
| Dual Input: | No |
| High Retention Outlets: | Yes |
| Input Current Display: | Auto-Orient |
| Input Monitoring: | PIPS |
| Locking Outlets: | Yes |
| Max Operating Temperature: | 60 °C |
| Fast Movers: | No |
| Mounting: | 0U Vertical |
| Outlet Monitoring: | None |
| Power Pivot Input: | Yes |
| Product Height (inch): | 69.0 |
| Product Height (mm): | 1753 |
| Product Max Depth (inch): | 3.39 |
| Product Max Depth (mm): | 87 |
| Product Nominal Depth (inch): | 2.25 |
| Product Nominal Depth (mm): | 58 |
| Product Width (inch): | 2.2 |
| Product Width (mm): | 56 |
Documents and Downloads
Documents and Downloads
- Servertech STV-4502M Design Diagram
- Servertech STV-4502M Wiring Diagram
- Servertech STV-4502M User Guide
- Servertech STV-4502M Application Note PRO2-001
- Servertech STV-4502M Application Note PRO2-002
- Servertech STV-4502M Application Note SPM-001
- Servertech STV-4502M Technical Note - About Bluetooth Ready
- Servertech STV-4502M Technical Note - CDU Firmware Upgrade Instructions
