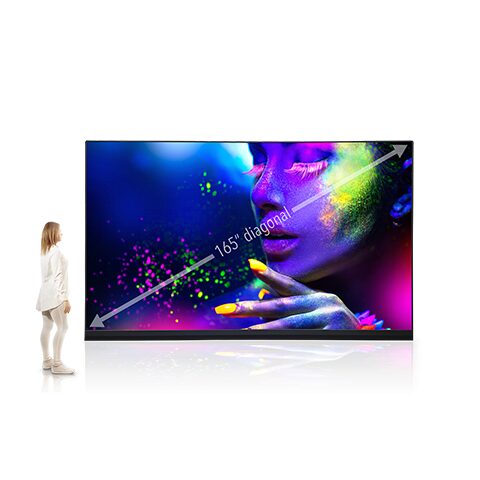

Sharp Electronics Corporation LED-FE009I2-165 | dvLED 0.9mm Pitch Video Wall, 165" Diagonal 4K UHD (3840 x 2160) Native Resolution. Includes Wall LED Modules
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The NEC direct view indoor LED FE Series provides vibrant LED imaging in a cost effective package and are the ideal solutions for today’s demanding applications. This 165" UHD kit is built with NEC’s 0.95mm LED-FE009i2 module designed for vibrant and colorful content visualization and is ideal for viewing from 3 to 6 feet away. The FE Series delivers unmatched brightness among fine-pitch DvLEDs. Boardrooms, auditoriums, retail, airport signage, and situational awareness are just some of the applications where the NEC FE Series is designed to be integrated. The FE Series is engineered with Multi-Color LEDs that deliver excellent imaging at a low cost and have no external cables required for installation. The front serviceable design allows for easy access and quick maintenance when needed. Sharp offers full planning and design, installation and post installation maintenance support, ensuring you get a custom tailored solution allowing you to focus on what’s most important – your business.
Legal Disclaimer To California Residents - WARNING: This product can expose you to chemicals including Styrene and Formaldehyde (gas), which are known to the State of California to cause cancer, and Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Sharp Electronics Corporation - LED-FE009I2-165 - Features
- 165” diagonal screen size
- UHD (3840x2160) resolution with a refresh rate of >= 3840 Hz
- Kit includes everything needed for an LED installation including the LED modules, power bar, LED controller, mounting structure, overframe kit as well as spare parts and a pixel card removal tool
- Front serviceable modules allowing for installation in difficult to access areas
- Pixel cards are hot-swappable and can be replaced without turning the display off
- Shallow depth (3.2” installed) and reduced weight allow for greater installation flexibility and also meet ADA requirements
- Improved LED performance with better contrast, viewing angles, brightness uniformity and color uniformity
- To learn more about NEC’s FE Series, click here
- Price does not include installation. Please contact NEC or your local AV dealer for information on pricing including installation.
Specifications
Specifications
Sharp Electronics Corporation - LED-FE009I2-165 - Product Categories
- Audio and Visual
- Video Display Equipment
- Monitors
Sharp Electronics Corporation - LED-FE009I2-165 - Specifications
| Brand Name | Sharp Electronics Corporation |
|---|---|
| Manufacturer Part Number | LED-FE009I2-165 |
| Item Description | dvLED 0.9mm Pitch Video Wall, 165" Diagonal 4K UHD (3840 x 2160) Native Resolution. Includes Wall LED Modules, Controller, Wall Mount, Frame And Spare Parts Kit. Standard 2 Year Warranty |
| UNSPSC Code | 46171612 |
| Display | - |
| Panel Technology | Direct View LED |
| Viewable Image Size | 165 in. |
| Aspect Ratio | 16:9 |
| Screen Resolution | 3840x2160 |
| Module Resolution | 640 x 360 |
| Pixel Configuration | 4-1 IMD (Black) |
| Pixel Pitch | 0.95 mm |
| Brightness (typical) | 600 cd/m2 |
| Brightness (maximum) | 660 cd/m2 |
| Contrast Ratio (typical) | 5000:1 |
| Viewing Angle (typical) | 70/70 horizontal / 70/70 vertical |
| Refresh Rate | Up to 3840 Hz |
| Active Screen Area | 143.4 x 81 in. / 3648 x 2052 mm |
| Orientation | Landscape |
| Dimming Capability | 256 levels |
| Color Processing | Up to 16 bit |
| Displayable Colors | 281 Trillion |
| Color Temperature (Max) (°K) | 9500 |
| Color Temperature (Typical) (°K) | 6500 |
| Color Temperature (Min) (°K) | 3000 |
| Gamma (Max) | 4.0 |
